Fluke Network CIQ-100 CableIQ Qualification Tester

Cable types supported:UTP, STP, FTP, SSTP, RG6, RG59, audio and security

Qualification autotests1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax

Supported tests: Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection.

Wiremap:Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs.

Find fault:Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application

Results storageUp to 250 qualification test results

PowerBattery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries

Battery life20 hours of typical use, without backlight

Other battery types supported4AA photo lithium, NIHM, NICAD

Dimensions and weight7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg)

Includes:

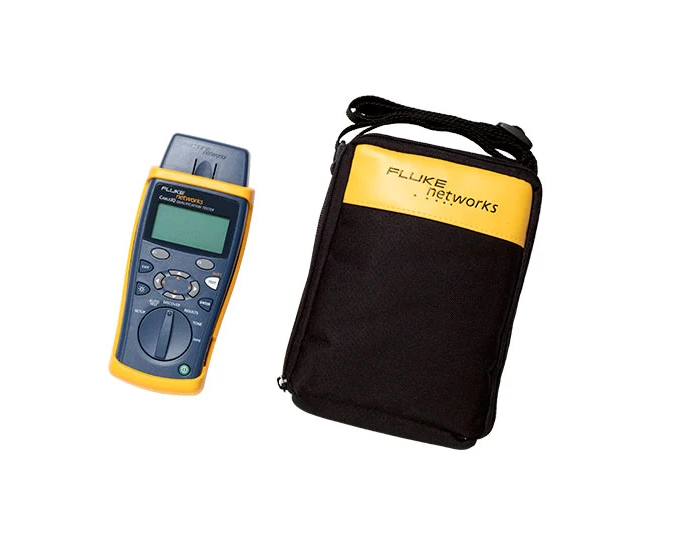

CableIQ with remote adapter

CableIQ Reporter software CD

(2) RJ45-RJ45 patch cord

USB cable

Coax 'F' push-on adapter

Owner's CD and quick start guide

(4) AA batteries

Soft carry case
