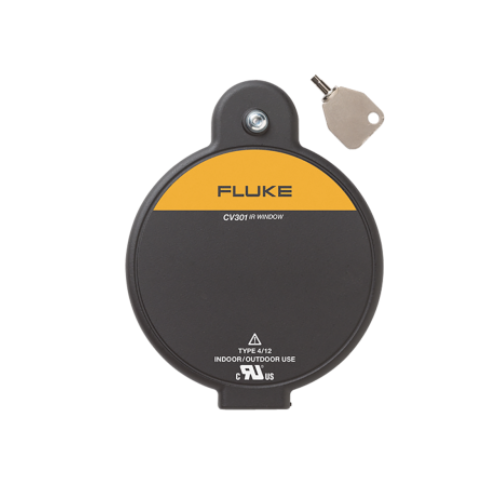

Size: 75 mm (3 in)
Voltage range: Any
NEMA environment type: Type 4/12 (indoor/outdoor)
AutoGround™: Yes
ClirVu® optic: Yes
Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
Compatible with all Fluke cameras: Yes
Jam nut locking system: Yes
Cover and fastener permanently attached: Yes
Single-hole install: Yes
Hand turn and security key door latch options: Yes
Visual inspection and fusion capable: Yes
Short/Mid/Long-wave IR and UV capable: Yes
Ratings and Testing Arc-tested (IEEE C37.20.7): 63 kA for 30 cycles @ 60 Hz at KEMA
CSA type rating: Type 4
IP rating: IP67 at TUV
Install
Actual mounting hole diameter required: 89.89 mm (3.539 in)
Overall window height: 141.5 mm (5.57 in)
Overall window width: 111.5 mm (4.39 in)
Overall window thickness: 16.2 mm (0.64 in)
Door latch: Security Key
Optics
Optic insert diameter: 75 mm (2.96 in)
Viewing aperture diameter: 67.95 mm (2.675 in)
Viewing aperture area: 3626 mm2 (5.62 in2)
Thickness: 2 mm (0.08 in)
