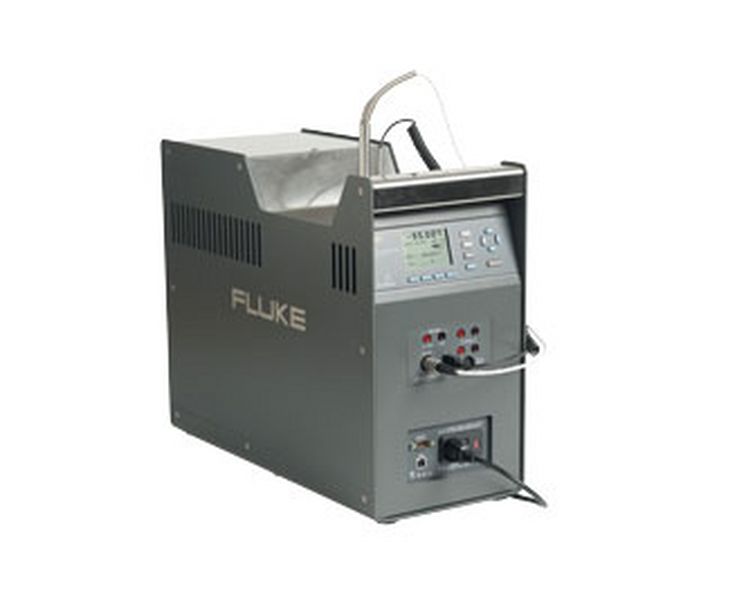

Fluke 9190A Ultra-Cool Field Metrology Well (–95 °C to 140 °C, ± 0.015 °C)

Temperature Range at 23 °C: –95 °C to 140 °C (–139 °F to 284 °F)
Display Accuracy: ± 0.2 °C full range
Accuracy with external reference: ± 0.05 °C full range
Stability: ± 0.015 °C full range
Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C full range
Immersion (Well) Depth: 160 mm (6.3 in)
Well diameter: 30 mm (1.18 in)
Heating Time: 15 min: 95 °C to 140 °C: 40 min
Cooling Time: 23 °C to –90 °C: 80 min
Resolution: 0.01 °
Display: LCD, °C or °F user-selectable
Size (H x W x D): 480 mm x 205 mm x 380 mm
Weight: 16 kg
Power Requirements: 100 V to 115 V (± 10 %) 50/60 Hz, 575 W, 200 V to 230 V (± 10 %) 50/60 Hz, 575 W
Computer Interface: RS-232 and 9930 Interface-it control software included
Insert (option)
