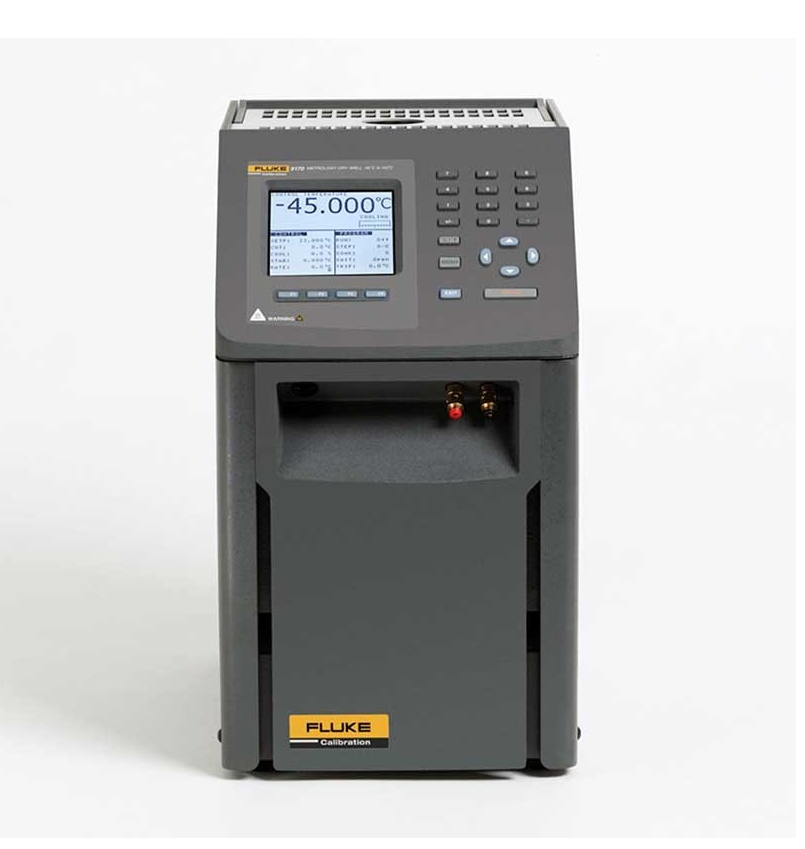

Temperature Range at 23 °C: –45 °C to 140 °C (–49 °F to 284 °F)
Display Accuracy: ± 0.1 °C full range
Stability: ± 0.005 °C full range
Axial Uniformity at 60 mm :
± 0.1 °C at –45 °C
± 0.04 °C at –35 °C
± 0.02 °C at 0 °C
± 0.07 °C at 140 °C
Hysteresis: 0.025 °C
Well Depth: 160 mm (6.3 in)
Resolution: 0.001 °C
Display: LCD, °C or °F user-selectable
Cooling Time: 44 min: 23 °C to –45 °C
Heating Time: 15 min: 32 min: 23 °C to 140 °C
Size (H x W x D): 366 x 203 x 323 mm
Weight: 14.2 kg
Power Requirements: 115 V ac (± 10 %), or 230 V ac (± 10 %), 50/60 Hz, 550 W
Computer Interface: RS-232 and 9930 Interface-it control software included
Insert (option)
Specifications |
9170 | 9171 | 9172 | 9173 | |
| Range (at 23 °C ambient) |
–45 °C to 140 °C (–49 °F to 284 °F) |
–30 °C to 155 °C (–22 °F to 311 °F) |
35 °C to 425 °C (95 °F to 797 °F) |
50 °C to 700 °C† (122 °F to 1292 °F) |
|
| Display Accuracy | ± 0.1 °C full range | ± 0.1 °C: 35 °C to 100 °C ± 0.15 °C: 100 °C to 225 °C ± 0.2 °C: 225 °C to 425 °C 7nbsp; |
± 0.2 °C: 50 °C to 425 °C ± 0.25 °C: 425 °C to 660 °C |
||
| Stability | ± 0.005 °C full range | ± 0.005 °C: 35 °C to 100 °C ± 0.008 °C: 100 °C to 225 °C ± 0.01 °C: 225 °C to 425 °C |
± 0.005 °C: 50 °C to 100 °C ± 0.01 °C: 100 °C to 425 °C ± 0.03 °C: 425 °C to 700 °C |
||
| Axial Uniformity (60 mm) |
± 0.1 °C at –45 °C ± 0.04 °C at –35 °C ± 0.02 °C at 0 °C ± 0.07 °C at 140 °C 7nbsp; |
± 0.025 °C at –30 °C ± 0.02 °C at 0 °C± 0.07 °C at 155 °C |
± 0.05 °C: 35 °C to 100 °C ± 0.1 °C: 100 °C to 225 °C ± 0.2 °C: 225 °C to 425 °C |
± 0.1 °C: 50 °C to 100 °C ± 0.25 °C: 100 °C to 425 °C± 0.4 °C: 425 °C to 700 °C |
|
| Radial Uniformity | ± 0.01 °C full range | ± 0.01 °C: 35 °C to 100 °C ± 0.02 °C: 100 °C to 225 °C ± 0.025 °C: 225 °C to 425 °C |
± 0.01 °C: 50 °C to 100 °C ± 0.025 °C: 100 °C to 425 °C ± 0.04 °C: 425 °C to 700 °C |
||
| Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes) |
± 0.02 °C at –45 °C ± 0.005 °C at –35 °C ± 0.01 °C at 140 °C |
± 0.005 °C at –30 °C ± 0.005 °C at 0 °C ± 0.01 °C at 155 °C |
± 0.01 °C full range | ± 0.02 °C at 425 °C ± 0.04 °C at 700 °C |
|
| Hysteresis | 0.025 °C | 0.04 °C | 0.07 °C | ||
| Well Depth | 160 mm (6.3 in) | 203 mm (8 in) | |||
| Resolution | 0.001 °C | ||||
| Display | LCD, °C or °F, user-selectable | ||||
| Key Pad |
Ten key with decimal and +/- button. Function keys, menu key, and °C / °F key. | ||||
| Cooling Time | 44 min: 23 °C to –45 °C 19 min: 23 °C to –30 °C 19 min: 140 °C to 23 °C |
30 min: 23 °C to –30 °C 25 min: 155 °C to 23 °C |
220 min: 425 °C to 35 °C 100 min: 425 °C to 100 °C |
235 min: 700 °C to 50 °C 153 min: 700 °C to 100 °C |
|
| Heating Time | 32 min: 23 °C to 140 °C 45 min: –45 °C to 140 °C |
44 min: 23 °C to 155 °C 56 min: –30 °C to 155 °C |
27 min: 35 °C to 425 °C | 46 min: 50 °C to 700 °C | |
| Size (HxWxD) | 366 x 203 x 323 mm (14.4 x 8 x 12.7 in) | ||||
|
Weight |
14.2 kg (31.5 lb) |
15 kg (33 lb) |
13.2 kg (29 lb) |
15 kg (33 lb) |
|
| Power | 115 V ac (± 10 %), or 230 V ac (± 10 %), 50/60 Hz, 550 W |
115 V ac (± 10 %), or 230 V ac (± 10 %), 50/60 Hz, 1025 W |
|||
| Computer Interface | RS-232 Interface with 9930 Interface-it control software included | ||||
| Traceable Calibration (NIST) |
Data at –45 °C, 0 °C, 50 °C, 100 °C, and 140 °C | Data at –30 °C, 0 °C, 50 °C, 100 °C, and 155 °C | Data at 100 °C, 150 °C, 250 °C, 350 °C, and 425 °C | Data at 100 °C, 200 °C, 350 °C, 500 °C, and 660 °C | |
| †Calibrated to 660 °C; reference thermometer recommended at higher temperatures. | |||||
Specifications |
Built-in Reference Input | ||||
| Temperature Range | –200 °C to 962 °C (–328 °F to 1764 °F) | ||||
| Resistance Range | 0 Ω to 400 Ω, auto-ranging | ||||
| Characterizations | ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d | ||||
| Resistance Accuracy | 0 Ω to 20 Ω: 0.0005 W 20 Ω to 400 Ω: 25 ppm |
||||
| Temperature Accuracy (does not include probe uncertainty) |
10 Ω PRTs: ± 0.013 °C at 0 °C ± 0.014 °C at 155 °C ± 0.019 °C at 425 °C ± 0.028 °C at 700 °C |
25 Ω and 100 Ω PRTs: ± 0.005 °C at –100 °C ± 0.007 °C at 0 °C ± 0.011 °C at 155 °C ± 0.013 °C at 225 °C ± 0.019 °C at 425 °C ± 0.027 °C at 661 °C |
|||
| Resistance Resolution | 0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω |
||||
| Measurement Period | 1 second | ||||
| Probe Connection | 4-wire with shield, 5-pin DIN connector | ||||
| Calibration | NVLAP accredited (built-in reference input only), NIST-traceable calibration provided | ||||
