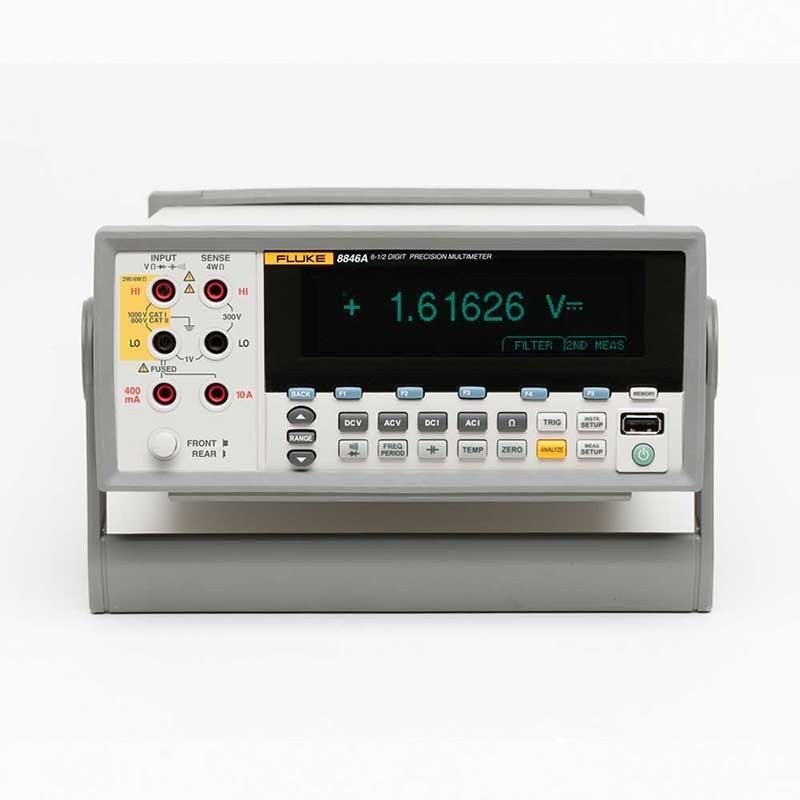

Fluke 8846A Calibration 8845A/8846A 6.5 Digit Multimeter

VFD Dot Matrix

6.5 Digits

Ranges:

100 mV to 1000 V

Max. Resolution:

100 nV

Accuracy:

8845A: 0.0035 + 0.0005 (% measurement + % of range)

8846A: 0.0024 + 0.0005(% measurement + % of range)

Ranges:

8845A: 100 mV to 750 V

8846A: 100 mV to 1000 V

Max. Resolution:

100 nV

Accuracy:

8845A: 0.06 + 0.03(% measurement + % of range)

8846A: 0.06 + 0.03(% measurement + % of range)

Frequency:

3 Hz to 300 KHz

2x4 Wire:

Yes

Ranges:

8845A: 100 Ω to 100 MΩ

8846A: 10 Ω to 1 GΩ

Max. Resolution:

8845A: 100 μΩ

8846A: 10 μΩ

Accuracy:

8845A: 0.010 + 0.001(% measurement + % of range)

8846A: 0.010 + 0.001(% measurement + % of range)

Ranges:

100 μA to 10 A

Max. Resolution:

100 pA

Accuracy:

0.050 + 0.005(% measurement + % of range)

Ranges:

8845A: 10 mA to 10 A

8846A: 100 mA to 10 A

Max. Resolution:

8845A: 10 nA

8846A: 100 pA

Accuracy:

0.10 + 0.04(% measurement + % of range)

Frequency:

3 Hz to 10 kHz

Ranges:

8845A: 3 Hz to 300 kHz

8846A: 3 Hz to 1 MHz

Max. Resolution:

1 μHz

Accuracy:

0.01 %

Yes

Ranges:

8846A: 1 nF to 0.1 F

Max. Resolution:

8846A: 1 pf

Accuracy:

8846A: 1 %

Type:

8846A: Platinum RTD

Ranges:

8846A: -200 °C to +600 °

Max. Resolution:

8846A: 0.01 °

Accuracy:

8846A: 0.06 °

NULL, Min/Max/Average, Std Dev

dB/dBm:

Yes

Statistics/Histogram:

Yes

Trendplot:

Yes

Limit Test:

Yes

USB Memory:

8846A: USB memory drive port

Real Time Clock:

8846A: Yes

Interfaces:

RS 232, IEE-488.2, Ethernet, USB (with optional adaptor)

Programming Languages/Modes:

8846A: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45
