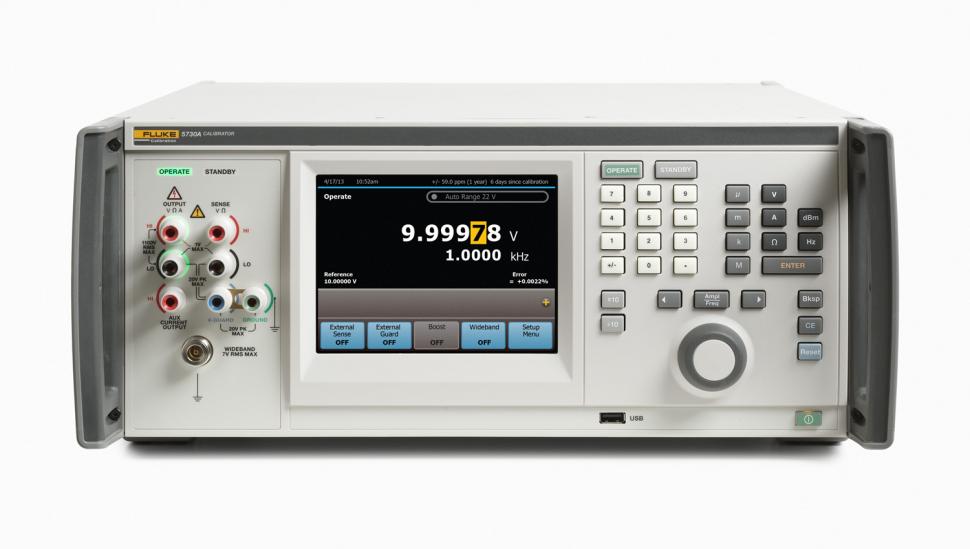

Fluke (Calibration) 5730A High Performance Multifunction Calibrator

Technical Specifications

Voltage DC

+ Range: 0 to ±1100 V

+ Best 1 Year, 95% Specification: 3.5 ppm + 2.5 µV

Voltage AC

+ Range: 22 µV to 1100V; 10 Hz to 1 MHz

+ Best 1 Year, 95% Specification: 42 ppm + 8 µV

Resistance

+ Range: 0 to 100 MΩ, 18 values in x1 and x1.9

+ Best 1 Year, 95% Specification: 6.5 ppm

Current DC

+ Range:0 to ±2.2A (0 to ±11A with 5725A; 0 to ±100 A with 52120A)

+ Best 1 Year, 95% Specification: 35 ppm + 7 nA

Current AC

+ Range: 9 µA to 2.2A, 10 Hz to 10 kHz (9 µA to ±11A with 5725A; 9 µA to ± 120 A with 52120A)

+ Best 1 Year, 95% Specification: 103 ppm + 8 nA

Wideband ac Voltage option

+ Range: 300 µV to 3.5V; 10 Hz to 50 MHz

+ Best 1 Year, 99% Specification: 0.4% + 500 µV

General Specifications

Warm up time: Twice the time since last warmed up, to a maximum of 30 minutes

Settling time: Less than 5 seconds for all functions and ranges except as noted

Standard interfaces: IEEE-488 (GPIB), RS-232, USB 2.0 Device, Ethernet, 5725A, 52120A, phase lock in (BNC), phase reference out (BNC)

Temperature performance:

+ Operating: 0 °C to 50 °C

+ Calibration: 15 °C to 35 °C

+ Storage: -40 °C to 75 °C

Operating altitude: 2000 m maximum

Relative humidity:

+ Operating: < 80% to 30 °C, < 70% to 40 °C, < 40% to 50 °C

+ Storage: < 95%, non-condensing.

Safety: IEC 61010-1: 300 V CAT II, Pollution Degree 2

Analog low isolation20 V

Electromagnetic environment: IEC 61326-1: Controlled

Line power: 47 Hz to 63 Hz; ±10% 100 V, 110 V, 115 V, 120 V, 200 V, 220 V, 230 V, 240 V

Power consumption: 300 VA

Dimensions

+ Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet

+ Width: 43.2 cm (17 in), standard rack width

+ Depth: 64.8 cm (25.5 in), overall; 59.4 cm (23.4 in), rack depth

Weight: 27 kg:(62 lbs.)

Specification confidence interval: 99% and 95%
