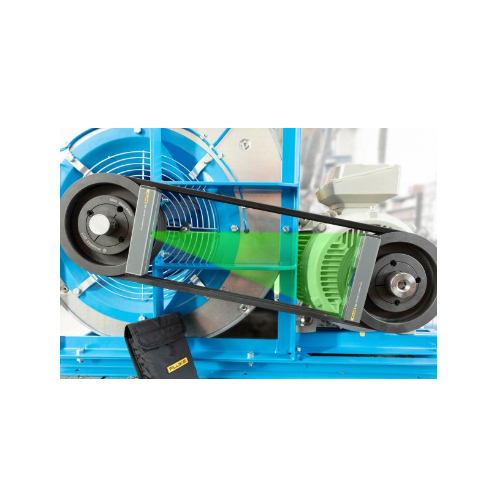

FLUKE FLUKE-835 Laser Belt Alignment Tool

Accuracy: 0.2˚

Laser wavelength: 505 - 535 nm (green – more visible)

Output power: < 1.0 mW

Classification class: 2

Measuring distance: 10 m between units

Laser line length: 7 m at 5 m distance

Controls: Laser ON/OFF rocker switch

Battery type: 4 AAA alkaline batteries

Operating time: 6 hours

Operating temp: -5˚C to 40˚C

Storage temp: -10˚C to 70˚C

Mounting method: Strong magnets

Weight: 0.3 kg

Dimensions: 37 x 40 x 170 mm

Housing: Gray anodized aluminum

Includes:

Fluke 835 Laser Unit

Fluke 835 Reflector Unit

Carrying Case

Quick Reference Guide

Safety Sheet

Datasheet
