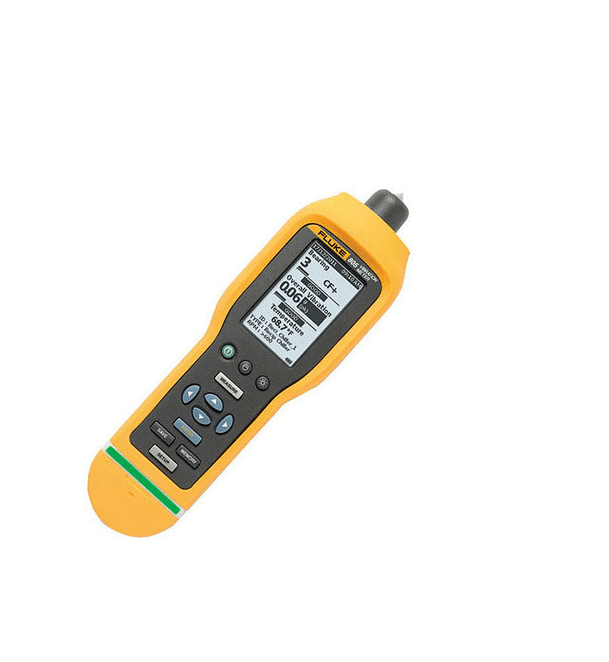

FLUKE FLUKE-805 FC Vibration Meter

Vibration Meter:

Low frequency range: 10 Hz to 1,000 Hz

High frequency range: 4,000 Hz to 20,000 Hz

Severity levels: Good, Satisfactory, Unsatisfactory, Unacceptable

Vibration limit: 50 g peak (100 g peak-peak)

Signal to noise ratio 80 dB

Sampling rate:

Low frequency: 20,000 Hz

High frequency: 80,000 Hz

Real time clock backup: Coin battery

Sensor:

Sensitivity:100 mV g ± 10%

Measurement range:0.01 g to 50 g

Low frequency range (overall measurement): 10 Hz to 1,000 Hz

High frequency range: 4,000 Hz to 20,000 Hz

Resolution: 0.01 g

Accuracy: At 100 Hz ± 5% of measured value

Amplitude Units:

Acceleration: g, m/sec²

Velocity: in/sec, mm/sec

Displacement: mils, mm

Infrared Thermometer (Temperature Measurement)

Range: -20 °C to 200 °C

Accuracy: ±2 °C (4 °F)

Focal length: Fixed, at ~3.8 cm (1.5")

Memory: Up to 3,500 measurements

IP rating: IP54

Vibration limit: 500g peak

Drop test: 1 meter

Battery: AA (2)Lithium Iron Disulfide

Battery life: 250 measurements

Size: 24.1 cm x 7.1 cm x 5.8 cm

Weight: 0.40 kg

Includes:

USB cable

Storage case

Belt holster

Quick reference guide

Two (2) AA batteries
