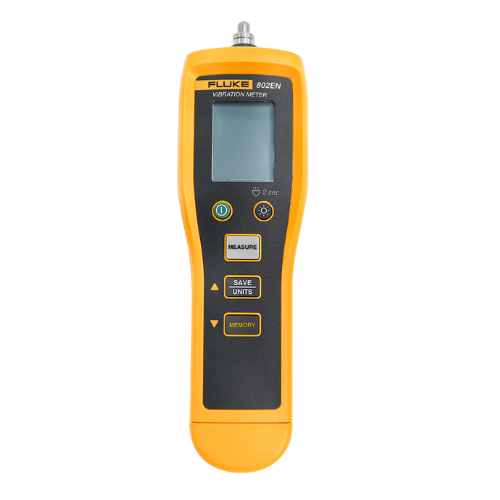

FLUKE FLUKE-802EN Vibration Meter

Internal Piezoelectric Accelerometer

Sensitivity (typical): 10.00 mV / m/s² ± 5% (1 g = 9.8 m/s²)

Measurement

Acceleration

Range: 0.1 m/s² to 199.9 m/s² peak (rms √2)

Resolution: 0.1 m/s²

Accuracy

± (5 % + 2 dgt) (LO: 10 Hz to 1 kHz)

± (10 % + 5 dgt) (HI: 1 kHz to 10 kHz)

Velocity

Range: 0.1 mm/s to 199.9 mm/s rms

Resolution: 0.1 mm/s

Accuracy: ± (5% + 2 dgt) (10 Hz to 1 kHz)

Displacement

Range: 0.001 mm to 1.999 mm peak-peak (rms 2√2)

Resolution: 0.001 mm

Accuracy: ± (5 % +2 dgt) (10 Hz to 1 kHz)

Piezoelectrical Accelerometer

Typical frequency response: 10 Hz to 15 kHz

Amplitude Units

Acceleration: g, m/s²

Velocity: mm/s

Displacement: mm

External Piezoelectrical Accelerometer

DC bias voltage: 6 V dc to 7 V dc

DC bias current: 3.5 mA

Battery: 2 AAA, IEC LR03

Battery life: 25 hrs for measurement

Dimensions (L x W x H): 24.1 x 7.1 x 5.8 cm

Weight: 220 g

Audio port: Stereo audio output jack (3.5 mm Audio Plug)

External sensor port: M12 plug

Environment

Operating temperature: -10 °C to 50 °C

Storage temperature: -30 °C to 60 °C

Operating humidity: 30% to 90% RH (non-condensing)

Operating altitude: 2,000 m

Storage altitude: 12,000 m

Ingress Protection: IP 40

Vibration limit: 500.0 m/s² peak

Drop test: 1 m
