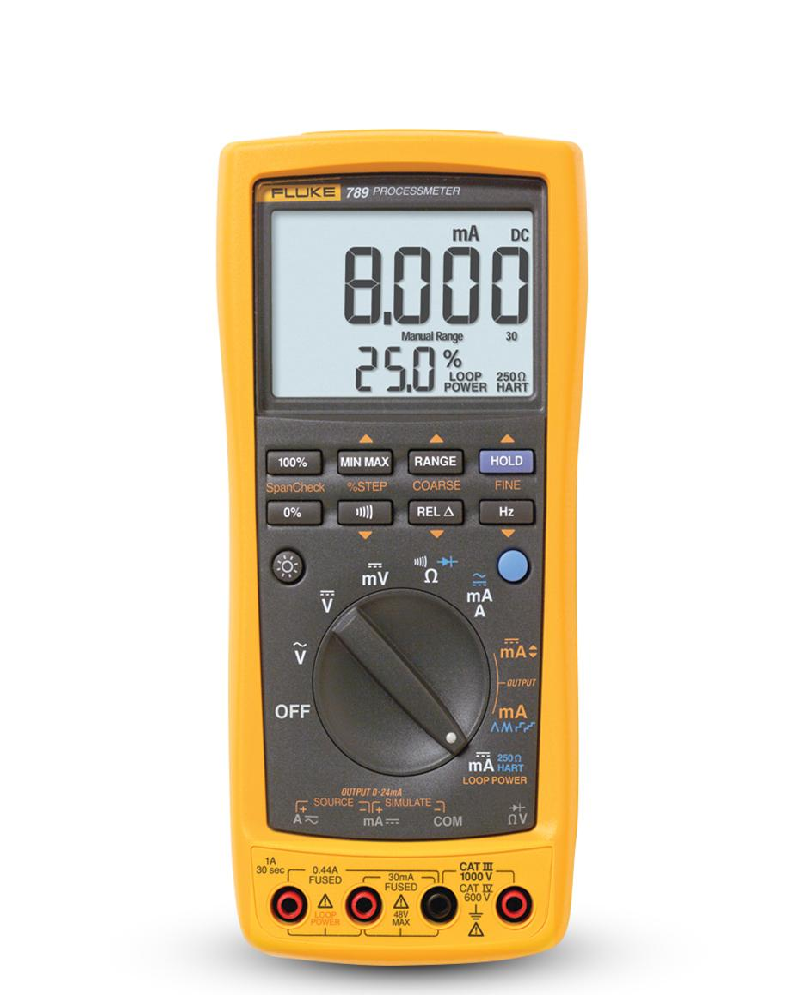

FLUKE FLUKE-789 ProcessMeter™ (measure (0-1 A AC or DC/ 0-1000 V), source 0-20mA)

- Current Measurement:

+ Range: 0-1 A AC or DC

Resolution: 1 mA

Accuracy: 0.2% + 2 LSD (DC)

+ Range: 0-30 mA

Resolution: 0.001 mA

Accuracy: 0.05% + 2 LSD

- Current Sourcing:

+ Range: 0-20 mA or 4-20 mA

+ Resolution: 0.05% of span

+ Drive Capability: 24 V Compliance or 1200 Ω @ 20 mA

- Frequency: to 19.999 kHz, 0.005% + 1 LSD

- Continuity: Beeps for resistance < 100 Ω

- Voltage measurement:

+ Range: 0-1000 V AC (true-rms) or DC

+ Resolution: 0.1 mV to 1.0 V

+ Accuracy: 0.1% Rdg + 1 LSD (VDC)

- Resistance measurement: to 40 MΩ, 0.2% + 1 LSD

Diode test: 2.0 V shows diode voltage drop

Display current and % of span: Yes

Auto step, auto ramp: Yes

Size: 50 x 100 x 203 mm

Weight: 610 g

Include: TL71 Premium Test Lead Set, C72 Alligator Clips, Four AA alkaline batteries (installed)

Users Manual and Quick Reference Guide

Includes:

AC175 Alligator Clips

Four (4) AA 1.5 V alkaline batteries (installed)

TL71 safety-designed test lead set

Datasheet

Manual
