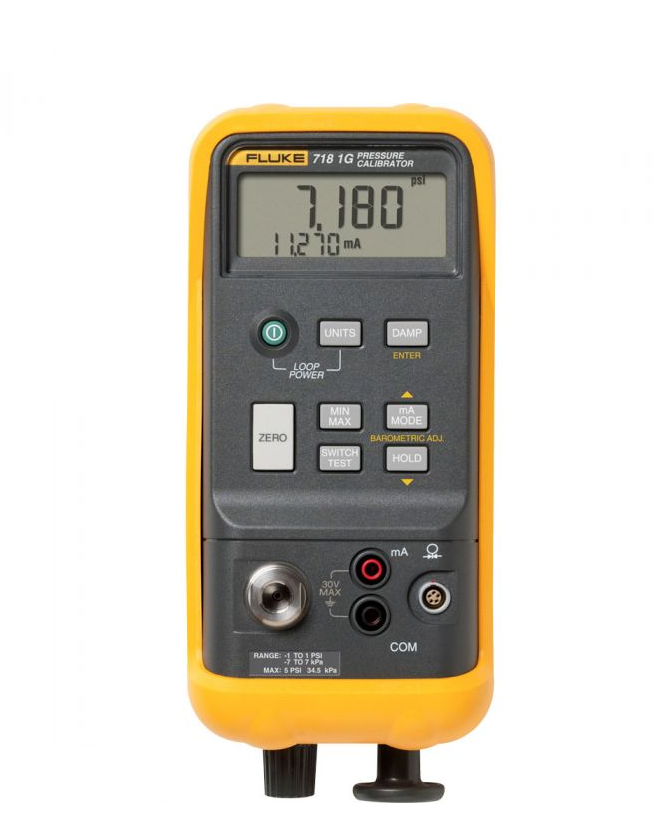

FLUKE FLUKE-718 1G/APAC Pressure Calibrators

Name: FLUKE FLUKE-718 1G/APAC Pressure Calibrators
Brand: FLUKE

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-718 1G/APAC

P/N6098135

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measure pressure via a 1/8-inch NPT Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device

Integrated pump

Measure Pressure: (internal sensor)

Accuracy: 0.025% full scale

Note: Dry air, non-corrosives only

Range: -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)

Resolution: 0.0001 psi, 0.001 mbar, 0.0001 kPa

Over Pressure: 5x Full Scale

Functions: zero, min/max, hold, damp

Maximum voltage: 30 volts: Non-operating

Size: 216 mm x 94 mm x 66 mm

Weight : 992 g

Power: 9V battery

Display: LCD, 5 digit

include:

Protective Yellow Holster with test lead storage

Instructions Sheet (14 languages)

Test Leads and Alligator Clip

Two 9V alkaline batteries

NIST - Traceable calibration report and data

Datasheet

Manual

Technical Specifications

Standard

718 Series
Measure Pressure	(internal sensor)
Accuracy	0.025% full scale
Functions	zero, min/max, hold, damp
Note:	Dry air, non-corrosives only

718 1G
Range:	-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution:	0.0001 psi, 0.001 mbar, 0.0001 kPa
Over Pressure:	5x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 30G
Range:	-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
Resolution:	0.001 psi, 0.1 mbar, 0.01 kPa
Over Pressure:	5x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 100G
Range:	-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
Resolution:	0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure:	2x Full Scale
Functions:	Zero, Min, Max, Hold, Damp

718 300G
Range:	-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
Resolution:	0.01 psi, 1 mbar, 0.1 kPa
Over Pressure:	375 PSI 25 bar
Functions:	Zero, Min, Max, Hold, Damp

Fluke 718 series via using 700 Series Pressure Modules

Range:	29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
Resolution:	Per pressure module specs
Accuracy:	To 0.025 % of full span, per pressure module specs
Functions:	Zero, Min, Max, Hold, Damp
	Note: media compatibility per pressure module specs

Fluke 718 series via built in pump

Range:	-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm
Loop Power:	Range: 24 V dc
	Accuracy: +/- 10 %
	Note: Drive; 20 mA into 1000 Ω for battery > 6.8V; 700 Ω for battery 5.8 to 6.8 V
mA Measure:	Range: 0 mA to 24 mA
	Resolution: 0.001 mA
	Accuracy: 0.015 % + 1 count

General Specifications

Maximum voltage

30 volts: Non-operating

Temperature

-40 °C to 60 °C

Operating Temperature

-10 °C to 55° C

Relative Humidity

95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)

Operating Altitude

3,000 M max

Shock

1 M drop test

Vibration

Random, 2 g, 5 Hz – 500 Hz

Safety

CSA C22.2 No. 1010.1: 1992

EMC

EN50082-1: 1992 and EN55022: 1994 Class B

Size

216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)

Weight

992 g (35 oz)

Power, battery life

9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718

Battery Life

4 to 20 hours typical, depending on functions used
