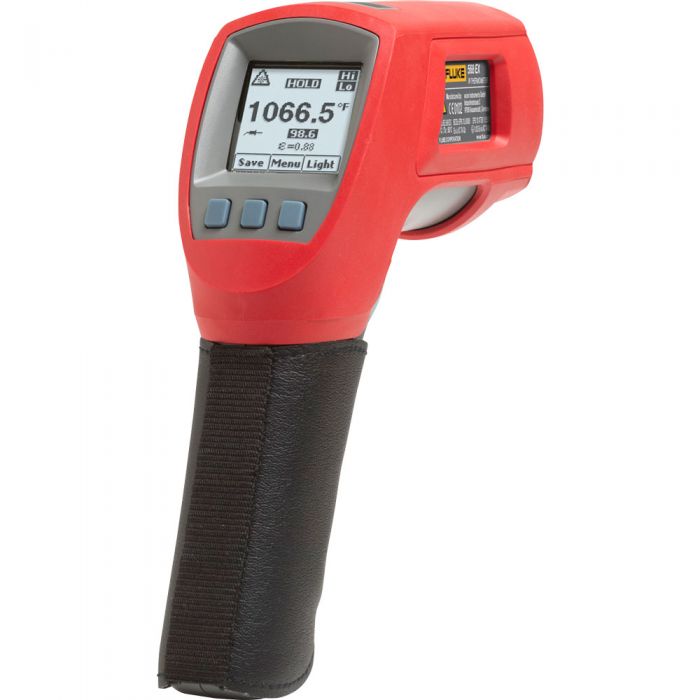

FLUKE FLUKE-568EX Intrinsically Safe Infrared Thermometer (50:1, 800°C, Intrinsically Safe)

* IR Temperature Range : -40 °C to 800 °C (-40 °F to 1472 °F)
- Display Resolution : 0.1 °C / 0.1 °F
- Accuracy :
<0 °C: ±(1.0 °C + 0.1 °/1 °C) / <32 °F: ±2 °F ±0.1 °/1 °F
≥0 °C: ±1 % or ± 1.0 °C, whichever is greater / ≥32 °F: ±1 % or ±2 °F, whichever is greater
- Repeatability : ±0.5 % of reading or ±0.5 °C (1 °F), whichever is
greater.
- Spectral Response : 8 μm to 14 μm
- Response Time : <500 ms
* KTC Input Range : -270 °C to 1372 °C (-454 °F to 2501 °F) (optional)
- KTC Resolution : 0.1 °C/0.1 °F
- KTC Input Accuracy :
<-40 °C: ±(1 °C + 0.2 °/1 °C) / <-40 °F: ±(2 °F + 0.2 °/1 °F)
≥-40 °C: ±1 % or 1 °C, whichever is greater / ≥-40 °F: ±1 % or 2 °F, whichever is greater
- Distance : 50:1 (D:S)
- Laser sighting : Single laser, wavelength 630 to 670 nm
- Emissivity : Digitally adjustable from 0.10 to 1.00 by 0.01 or via
built-in table of common materials
- Operating Temperature : 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature : -20 °C to 60 °C (-4 °F to 149 °F)
- Dimensions : 17.69 cm (6.965 in) H x 16.36 cm (6.441 in) L x 5.18 cm (2.039 in) W
- Weight : 0.322 kg (0.7099 lb)
- Power : 2 AAA /LR03 type-approved batteries.
- Standard Accessories : Main unit, pin 2 AAA, Manual,
