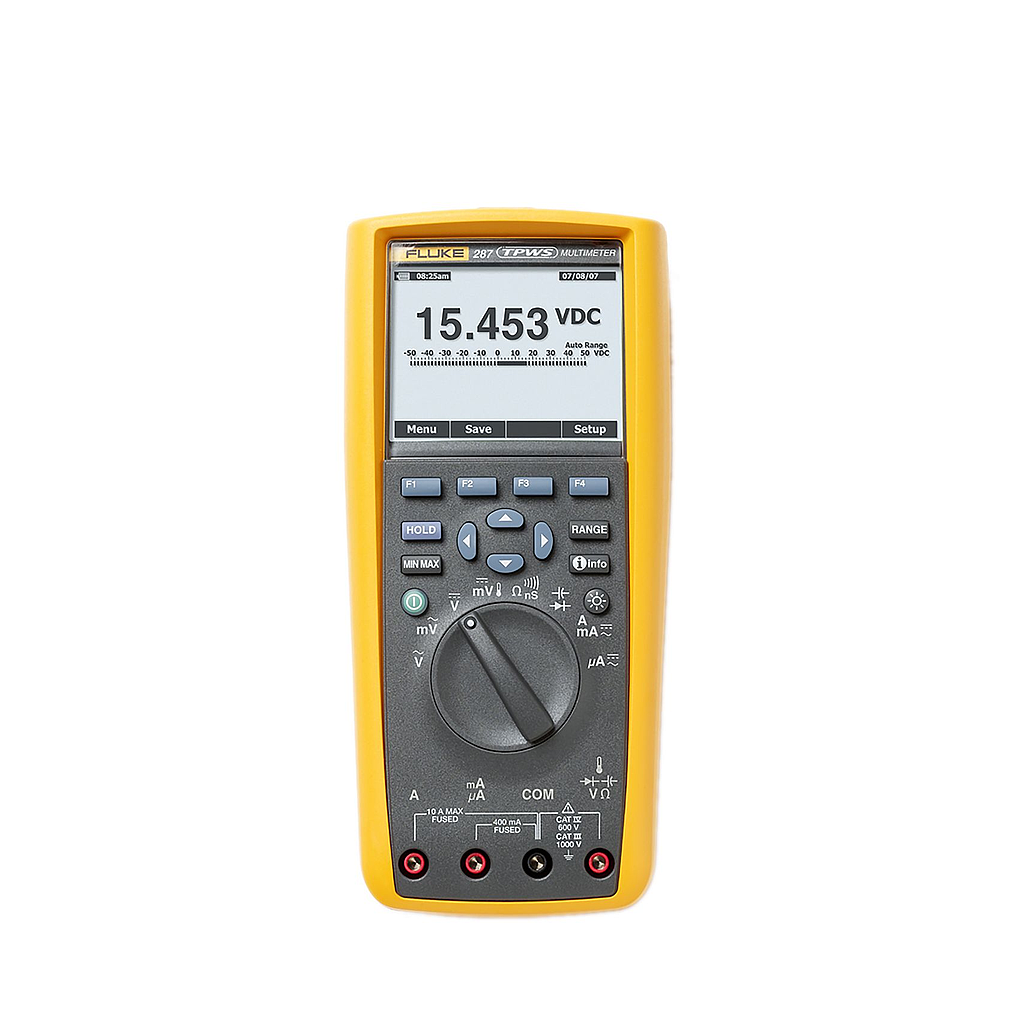

FLUKE FLUKE-287 True-rms Electronics Logging Multimeter with TrendCapture (True Rms, 0.025 %)

DCV: 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.025 %

ACA (True RMS): 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.4 %

DCA: 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.06 %

ACA (True RMS):500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.6%

Temperature: -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) (option probe)

R: 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ /0.05 %

C: 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF /1.0 %

F: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz /0.005%

Multiple on-screen displays: Yes

True-rms AC bandwidth : 100 kHz

DBV/dBm: Yes

Conductance : 50.00nS

Continuity beeper: Yes

Peak: 250 μS

Elapse time clock: Yes

Time of day clock: Yes

Min-Max-Avg: Yes

Duty Cycle: 0.01 % to 99.99 %

Pulse Width: 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms

Hold : Yes

Isolated Optical Interface: Yes

Auto/Touch Hold: Yes

Reading memory: Yes

Log to PC: Yes

Interval/Event Logging: Yes

Logging Memory : Up to 10,000 readings

Size: (HxWxL 22.2 cm x 10.2 cm x 6 cm

Weight: 870.9 g (28 oz)

Battery type: 6 AA alkaline batteries

include: Manual, 6 AA Batteries, installed, TL71 Silicone Test Leads, Probe Holder, Two AC175 Alligator Clips
