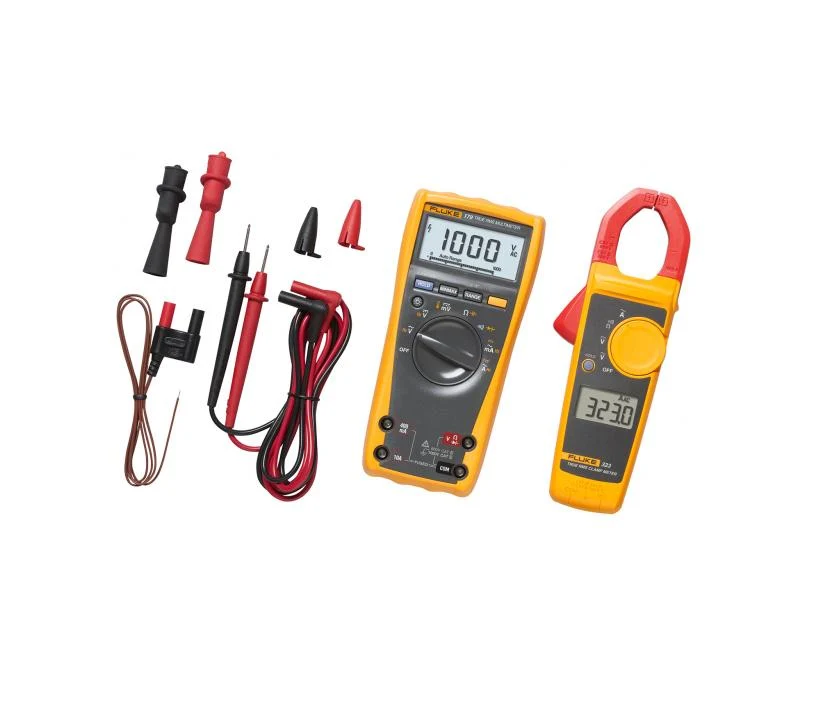

FLUKE FLUKE-179-2/IMSK Industrial Multimeter Service Kit

Fluke 179 True-RMS Digital Multimeter

Specifications

Voltage DC:

+ Accuracy: ±(0.09% + 2)

+ Max. resolution: 0.1 mV

+ Maximum: 1000 V

Voltage AC

+ Accuracy: ±(1.0% + 3)

+ Max. resolution: 0.1 mV

+ Maximum: 1000 V

Current DC

+ Accuracy: ±(1.0% + 3)

+ Max. resolution: 0.01 mA

+ Maximum: 10 A

Current AC

+ Accuracy: ±(1.5% + 3)

+ Max. resolution: 0.01 mA

+ Maximum: 10 A

Resistance

+ Accuracy: ±(0.9% + 1)

+ Max. resolution: 0.1 Ω

+ Maximum: 50 MΩ

Capacitance

+ Accuracy: ±(1.2% + 2)

+ Max. resolution: 1 nF

+ Maximum: 10.000 µF

Frequency

+ Accuracy: ±(0.1% + 1)

+ Max. resolution: 0.01 Hz

+ Maximum: 100 kHz

Temperature

+ Accuracy: ±(1.0% + 10)

+ Max. resolution: 0.1°C

+ Range: -40°C / 400°C

Environmental Specifications

Operating temperature: -10°C to +50°C

Storage temperature: -30°C to +60°C

Humidity (without condensation): 0% – 90% (0°C – 35°C); 0% – 70% (35°C – 50°C)

Safety Specifications

Overvoltage category: EN 61010–1 to 1000 V CAT III; EN 61010–1 to 600 V CAT IV

Agency approvals: UL, CSA, TÜV listed and VDE Pending

Mechanical and General Specifications

Size: 43 x 90 x 185 mm

Weight: 420 g

Battery life: Alkaline ~200 hours typical, without backlight

Fluke 323 True RMS Clamp Meter

Specifications

AC current:

+ Range: 400.0 A

+ Accuracy: 2% ± 5 digits (45 Hz to 65 Hz); 2.5% ± 5 digits (65 Hz to 400 Hz)

DC current:

+ Range: -

+ Accuracy: -

AC voltage:

+ Range: 600.0 V

+ Accuracy: 1.5% ± 5 digits

DC voltage:

+ Range: 600.0 V

+ Accuracy: 1.0% ± 5 digits

Resistance:

+ Range: 400.0 Ω/ 4000 Ω

+ Accuracy: 1.0% ± 5 digits

Continuity: ≤ 70 Ω

Capacitance: -

Frequency: -

AC response: True-RMS

Backlight: -

Data hold: Yes

Contact temperature: -

Min/Max: -

Size: H x W x D (mm): 207 x 75 x 34

Max wire diameter: 30 mm (600 MCM)

Weight: 265 g

Category rating: CAT III 600 V; CAT IV 300 V

Datasheet
