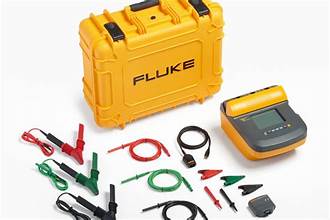

FLUKE FLUKE-1550C FC KIT Insulation Tester Kit (5000V, 1 TΩ , Certificate of calibration, ir3000 FC)

Test voltage (DC): 250V, 500V, 1000V, 2500V, 5000V

Bar graph range: 0 to 1 TΩ

Insulation test voltage accuracy: -0%, +10% at 1 mA load current

Induced AC mains current rejection: 2 mA maximum

Charging rate for capacitive load: 5 seconds per μF

Discharge rate for capacitive load: 1.5 s/μF

Leakage current measurement:

Range: 1 nA to 2 mA

Accuracy: ±(5% + 2 nA)

Capacitance measurement

Range: 0.01 μF to 15.00 μF

Accuracy: ±(15% rdg + 0.03 μF)

Timer

Range: 0 to 99 minutes

Resolution setting: 1 minute

Resolution indication: 1 second

Display: 75 x 105 mm

Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12

Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA

Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)

Weight:3.7 kg (8.2 lb)

Temperature (operating): -20°C to 50°C (-4°F to 122°F)

Temperature (storage): -20°C to 65°C (-4°F to 149°F)

Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
