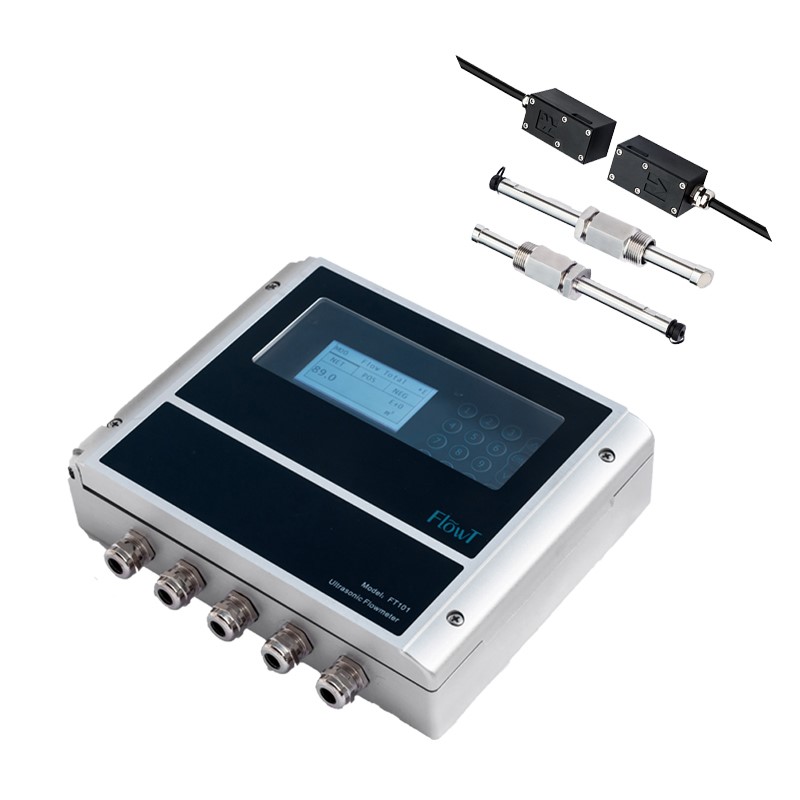

FlowT FT101 Ultrasonic Flow Meter (±0.09ft/s ~ ±40ft/s)

Performance

Flow range: ±0.09ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s)

Accuracy: ±0.5% of reading (for ±1.5ft/s~±40ft/s)

Repeatability: 0.15% of measured value

Linearity: ±0.5%

Pipe size: 1"to 200" (25mm to 5000mm). Pipe size under 1" is an option

Function

Outputs: Analog output: 4~20mA, max load 750Ω.

Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)

Relay output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)

Communication: RS232&RS485

Memory: TF card (Max 4G)

Power supply: 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC

Display: 240*128 back lit LCD

Temperature: Transmitter: -40℉~140℉(-40℃~60℃)

Transducer:-40℉~176℉(-40℃~80℃,standard)

Humidity: Up to 99% RH,non-condensing

Physical

Transmitter: IP65

Transducer: IP68

Encapsulated design

Double-shielded transducer cable

Standard/maximum cable length:30ft/900ft(9m/274m)
