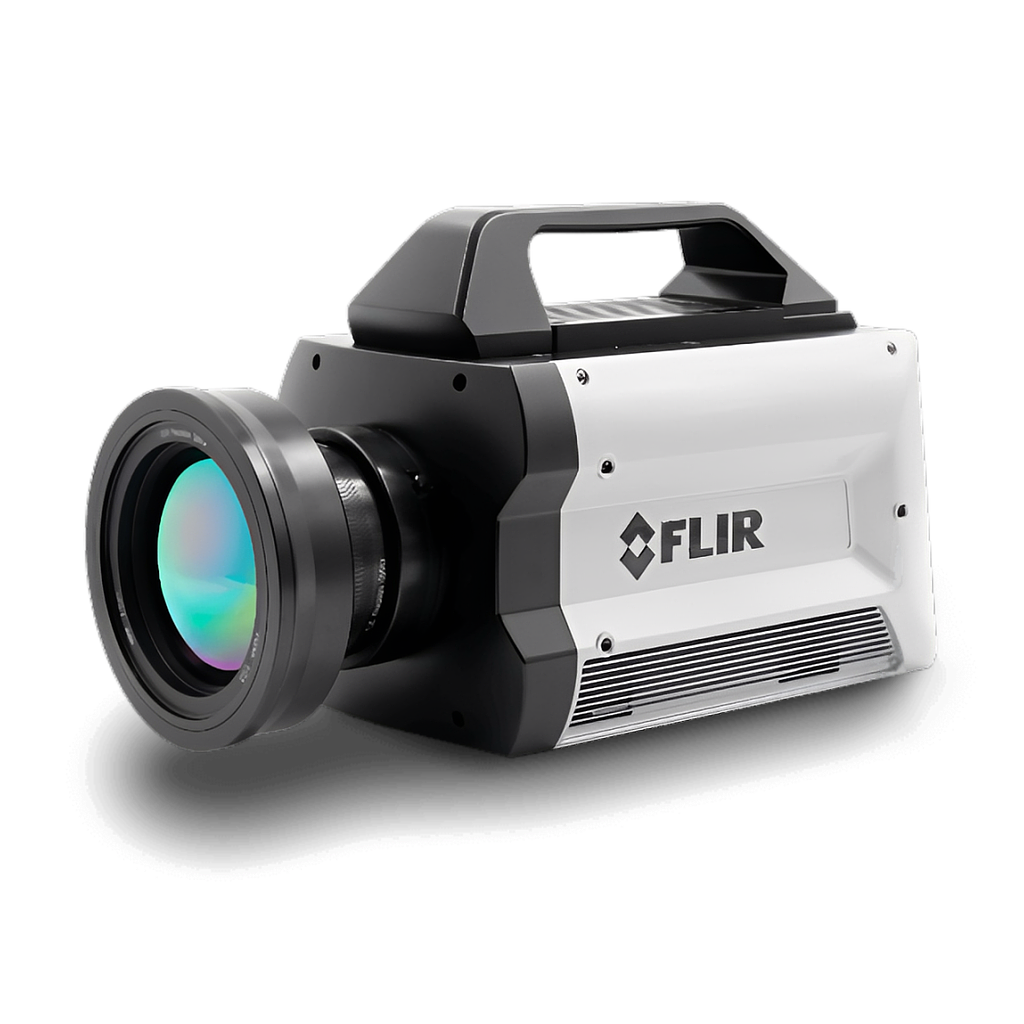

FLIR X8583HS SLS High Definition LWIR Science-Grade Camera (7.5–12 µm, f/4., -20°C ~ 350°C)

Resolution: 1280 × 1024

Detector Pitch: 12 µm

Spectral Range: 7.5 µm (lower), 11.5–12.5 µm (upper)

Detector Type: Strained Layer Superlattice (SLS)

Camera f-number: F(7.5–12 µm), f/4.0: f/4.0

Dynamic Range: 14-bit

NETD: 40 mK typical

Frame Rate [Full Window]: Programmable: approx. 0.5 Hz to 181 Hz

Integration Time: Programmable: 270 ns to approx. full frame

Standard Temperature Range [with band matched optics]: -20°C to 350°C (-4°F to 662°F), -10°C for microscopes

Optional Temperature Range [with band matched optics]: ND1: 250°C–1500°C (482°F–2732°F); ND2: 500°C–3000°C (932°F–5432°F)

Filtering: 4-position motorized warm filter wheel, standard 1-inch filters, user swappable

Focus: Motorized (compatible with manual)
