Imaging and optical data
- Field of view (FOV): 25° x 19.6°
- IR resolution: 80 × 60 pixels
- Thermal sensitivity/NETD: < 150 mK
- Minimum focus distance): 0.1 m (4 in.)
- Image frequency: 9Hz
- Focus Focus: free
Detector data
- Detector type: Focal plane array (FPA), uncooled microbolometer
- Spectral range: 8–14 μm
Image presentation
- Display: 2.0 in. TFT LCD
Measurement
- Object temperature range: –25 to +380°C (–13 to +716°F)
- Accuracy: ±1.5% or 1.5°C (2.7°F)
- Distance to spot ratio: 24:1
- Minimum measurement distance: 26 cm (10 in.)
- Center spot: Yes
- Color palettes: Hot Iron, Rainbow, Grayscale
Image Storage
- Memory type: Micro SD card
- Image storage capacity: 75 000 pictures with included 8 GB Micro SD card
- Memory expansion: 32 GB SD card maximum
- Saved image format: Bitmap (BMP) image with temperature and emissivity
Laser pointers
- Laser: Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Power system
- Battery type: Rechargeable Lion battery
- Battery voltage: 3.7 V
- Battery operating time: >5 hours of continuous scanning with lasers
- Battery charge life: 30 days minimum
- Charging system: Battery is charged inside the camera
- Charging time: 4 hours to 90%, 6 hours to 100%
- Power management: Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Environmental data
- Operating temperature range: -10 to +45ºC (+14 to 113ºF)
- Storage temperature range: -30 to +55ºC (-22 to 131ºF)
- Humidity (operating and storage): 0-90% RH (0-37ºC (32-98.6ºF)), 0-65% RH (37-45ºC (98.6-113ºF)), 0-45% RH (45-55ºC (113-131ºF))
Physical data
- Camera weight, incl. battery:0.312 kg (11 oz.)
- Camera size (LxWxH): 186 mm × 55 mm × 94 mm (7.3 in. × 2.2 in. × 3.7 in.)
- Tripod mounting: 1/4 in.-20 on handle bottom
Unit included:

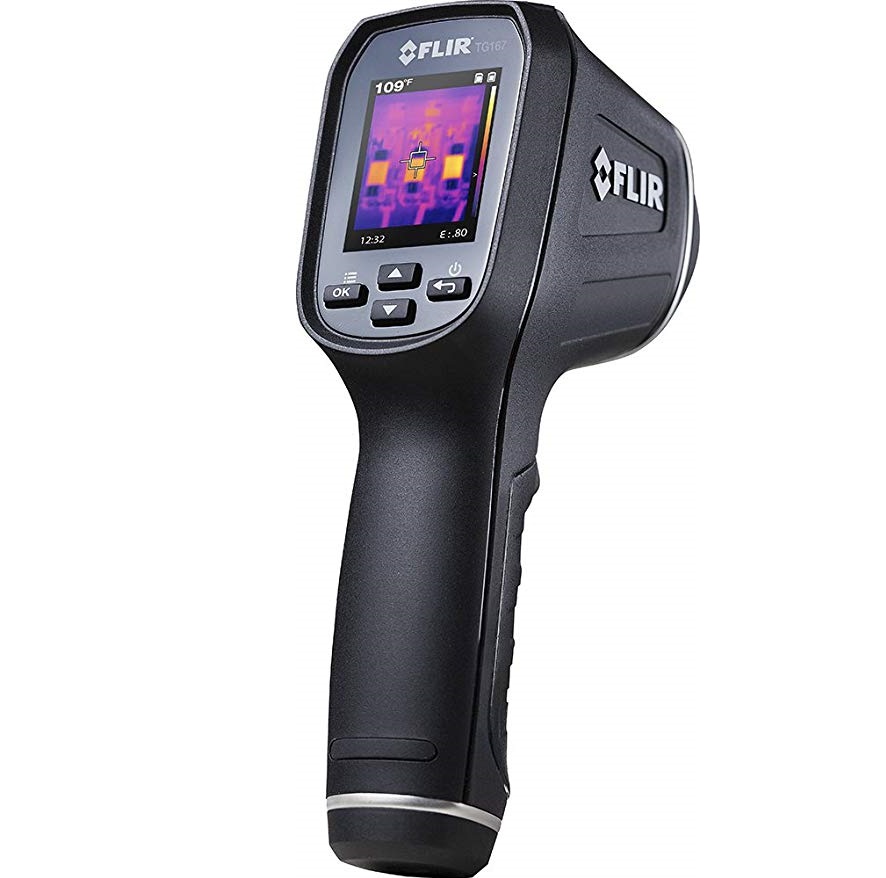

- Spot Thermal Camera
- Wrist Lanyard
- 8 GB MicroSD Card
- Printed Documentation
- Power Supply with Separate USB Cable
