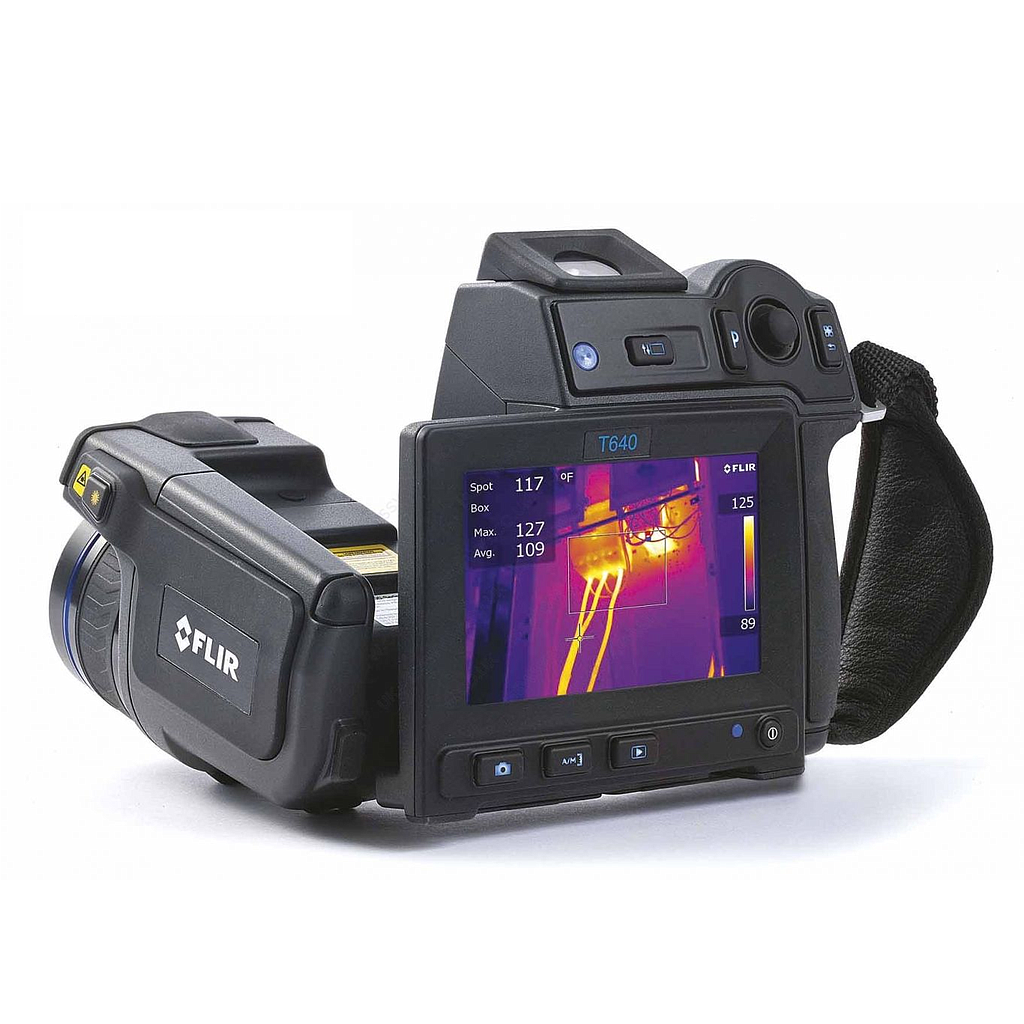

Flir T640-45 Thermal Imaging IR Camera (Zoom 8x, 640 × 480 Pixel, 2000℃, lens 45° ) | EMIN.CO.TH

Flir T640-45 Thermal Imaging IR Camera (Zoom 8x, 640 × 480 Pixel, 2000℃, lens 45° )

Name: Flir T640-45 Thermal Imaging IR Camera (Zoom 8x, 640 × 480 Pixel, 2000℃, lens 45° )
Brand: FLIR

ManufacturerFLIR

ModelT640-45

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Zoom: 8×
Accuracy :+/-2% or 2° C
IR Pixel Resolution: 07,200 (640 × 480) Pixel
Thermal Sensitivity: < 0.035° C
Temperature Range: -40°F to 3,632°F (-40°C to 2,000°C)
Display Size / Format: 4.3"/Landscape (Widescreen)
Measurement Modes: 5 modes:10 Spots, 5 Area Boxes/Circles, Isotherm, Auto hot/cold spot, Delta T
Spot Mode: 10 moveable
Frame Rate: 30 Hz
Field of View: 25° × 19°
Include: T640 with lens 45°,hard carrying case, two batteries, a battery charger, SD card, cables, manual on CD, quick start guide, and FLIR Tools reporting software.

Datasheet

<td width="80%" style="width:80.28%;border:solid windowtext 1.0pt; mso

	T420	T440	T460	T600	T620	T640	T660
Accuracy	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal		+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal			+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Thermal Resolution	76,800 (320 × 240)			172,800 (480 × 360)	307,200 (640 × 480)
Thermal Sensitivity	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.02°C @ 30°C
Temperature Range	-4°F to 1,202°F (-20°C to 650°C) Optional to 2,192°F (1,200°C)	-4°F to 2,192°F (-20°C to 1,200°C)	-4°F to 2,732°F (-20°C to 1,500°C)	-40°F to 1202°F (-40°C to 650°C)	-40°F to 1,202°F (-40°C to 650°C) Optional: to 3,632°F (2,000°C)	-40°F to 3,632°F (-40°C to 2,000°C)
Measurement Presets	7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements	6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; user preset 1; user preset 2
UltraMax™	Included			N/A	Included
User Presets	N/A	Included
Spot Mode	5 moveable			10 moveable
Area Mode	Included
Profile	N/A	Included			N/A	Included
Color Alarm (isotherm)	Blue below, red above, yellow interval
Frame Rate	60 Hz			30 Hz
Field of View	25° × 19°
Optional Lenses	6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm			25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus	Manual & Automatic					Manual, Automatic, and Continuous
Continuous Auto Focus	N/A					Included
Min. Focus Distance	1.31 ft (0.4 m)			0.82 ft (0.25 m)
Radiometric Recording	N/A		CSQ to memory card	N/A			CSQ to memory card
Radiometric JPEG via USB	Included
Radiometric JPEG to SD Card	Included
MPEG4 to SD (non-radiometric IR)	Included
MPEG4 via USB (non-radiometric IR/Visual)	Included
Radiometric streaming via USB	Included
Display Size	3.5”			4.3”
Touchscreen	Standard			Capacitive touch screen
Auto Orientation	Included
MSX Thermal Image Enhancement	Included
Viewfinder	N/A					Included
Color (Palettes)
