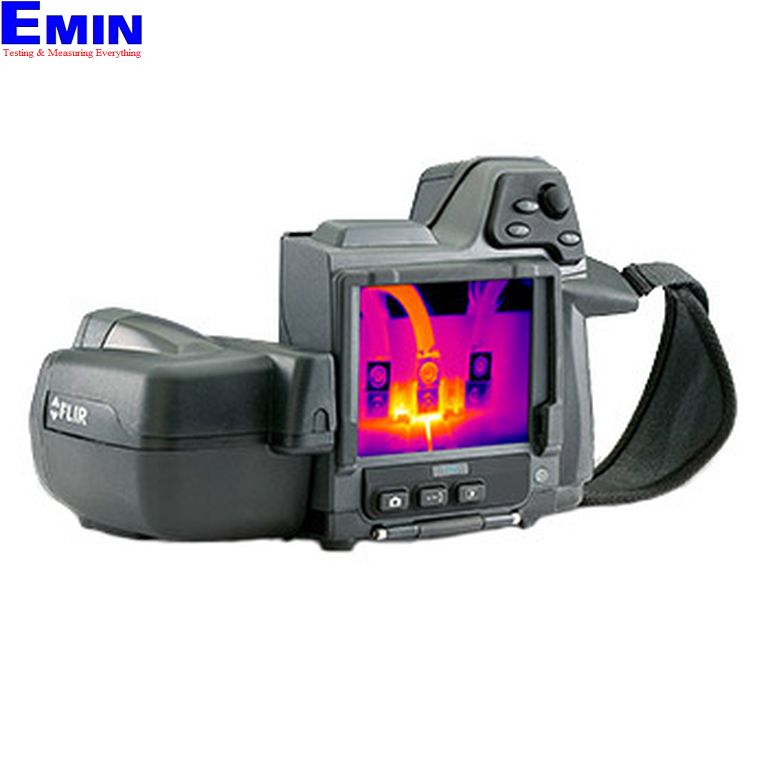

Manufaturer: Flir-USA
Model: T420
Zoom 4X Continuous
Accuracy: ±2% or 2°C
IR Pixel Resolution: 76,800 (320 × 240)
Thermal Sensitivity: <0.045°C
Temperature Range: -4°F to 1,202°F (-20°C to 650°C)
Display Size / Format: 3.5"/Landscape (Widescreen)
Measurement Modes: 5 modes: 5 Spotmeters, 5 Area Boxes,Isotherm, Auto hot/cold spot, Delta T
Spot Mode: 5 moveable
Frame Rate: 60 Hz
Field of View : 25° × 19°
Option more Lens:
Model: T420-KIT-15 (Include T420 with Lens 15°)
Model: T420-KIT-45 (Include T420 with Lens 45°)
|
T420 |
T440 |
T460 |
T600 |
T620 |
T640 |
T660 |
|
|
Accuracy |
+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal |
+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal |
+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
|||
|
Thermal Resolution |
76,800 |
172,800 |
307,200 |
||||
|
Thermal Sensitivity |
<0.04°C @ 30°C |
<0.03°C @ 30°C |
<0.04°C @ 30°C |
<0.03°C @ 30°C |
<0.02°C @ 30°C |
||
|
Temperature Range |
-4°F to 1,202°F (-20°C to 650°C) |
-4°F to 2,192°F |
-4°F to 2,732°F (-20°C to 1,500°C) |
-40°F to 1202°F |
-40°F to 1,202°F (-40°C to 650°C) |
-40°F to 3,632°F |
|
|
Measurement Presets |
7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements |
6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; user preset 1; user preset 2 |
|||||
|
UltraMax™ |
Included |
N/A |
Included |
||||
|
User Presets |
N/A |
Included |
|||||
|
Spot Mode |
5 moveable |
10 moveable |
|||||
|
Area Mode |
Included |
||||||
|
Profile |
N/A |
Included |
N/A |
Included |
|||
|
Color Alarm (isotherm) |
Blue below, red above, yellow interval |
||||||
|
Frame Rate |
60 Hz |
30 Hz |
|||||
|
Field of View |
25° × 19° |
||||||
|
Optional Lenses |
6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm |
25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm |
|||||
|
Focus |
Manual & Automatic |
Manual, Automatic, and Continuous |
|||||
|
Continuous Auto Focus |
N/A |
Included |
|||||
|
Min. Focus Distance |
1.31 ft (0.4 m) |
0.82 ft (0.25 m) |
|||||
|
Radiometric Recording |
N/A |
CSQ to memory card |
N/A |
CSQ to memory card |
|||
|
Radiometric JPEG via USB |
Included |
||||||
|
Radiometric JPEG to SD Card |
Included |
||||||
|
MPEG4 to SD (non-radiometric IR) |
Included |
||||||
|
MPEG4 via USB (non-radiometric IR/Visual) |
Included |
||||||
|
Radiometric streaming via USB |
Included |
||||||
|
Display Size |
3.5” |
4.3” |
|||||
|
Touchscreen |
Standard |
Capacitive touch screen |
|||||
|
Auto Orientation |
Included |
||||||
|
MSX Thermal Image Enhancement |
Included |
||||||
|
Viewfinder |
N/A |
Included |
|||||
|
