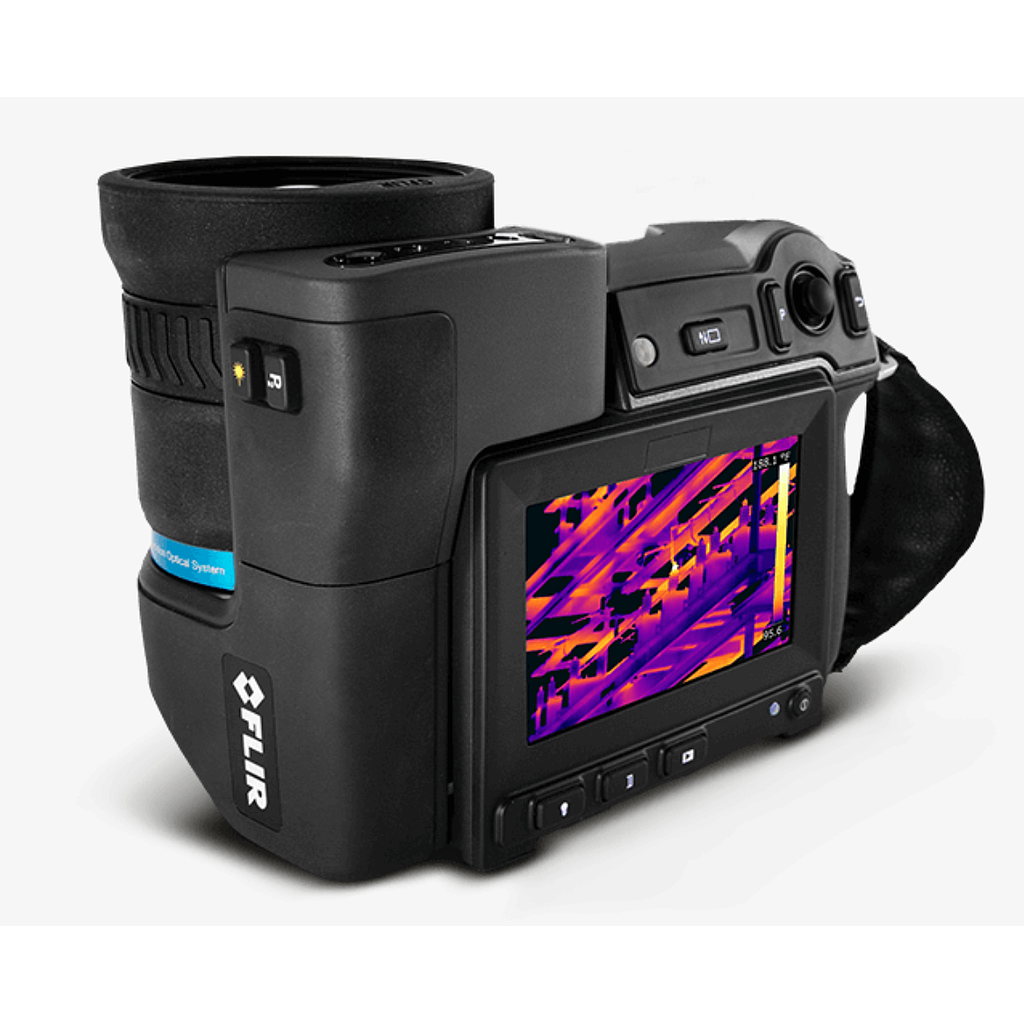

FLIR T1010 12° HD Thermal Imaging Camera (1024 × 768 pixel; -15°C to 50°C; f/1.2)

IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax

Thermal Sensitivity/NETD: <25 mK @ 30°C (86°F)

Field of view (FOV): 12° × 9°

Digital Camera: Field of view adapts to the infrared lens

Image Modes: Thermal, thermal MSX, digital camera

Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels

Storage Media: Removable media SD or SDHC card. Class 10 or better recommended

IMAGING & OPTICAL

4.3” Display: 800 × 480 pixels

Auto orientation: Automatic landscape or portrait

Automatic Image Adjustment: Standard or histogram based on the image content

Built-in Digital Camera: 5 Mpixel with LED light

Camera size excl lens (L x W x H): 167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.)

Camera software update: Using USB cable or SD card

Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Detector Pitch:17 µm

Detector Type: Focal plane array (FPA), uncooled microbolometer

Digital Camera: Field of view adapts to the infrared lens

Digital image enhancement: Adaptive digital noise reduction

Digital Zoom: 1–8× continuous

Display Type: Capacitive touchscreen

Field of view (FOV): 12° × 9°

f-number: 1.2

Focal Length: 83.4 mm (3.28 in)

Focus: One shot or manual

Frame Rate [Full Window]: 30 Hz

Gallery: Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera

Image Description: No

Image Frequency: 30 Hz

Image Modes:Thermal, thermal MSX, digital camera

Infrared Image: Full color infrared image

IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax

Laser: Activated by a dedicated button

Lens Identification: Automatic

Manual Image Adjustment: Linear based, possible to adjust level/span/max./min.

Minimum IR focus distance: 1.3 m (4.26 ft)

Minimum IR–visual alignment distance: 1.3 m (4.26 ft)

MSX Resolution: 1024 × 768 pixels

Multi Spectral Dynamic Imaging (MSX): Thermal image with enhanced detail presentation

Non-radiometric IR video recording: H.264 to the memory card

Non-radiometric IR video streaming: H.264 video using USB

Optional Lenses: 7°, 28°, 45°, and 3x close-up lenses

Picture-in-Picture: No

Sketch: No

Spatial resolution (IFOV): 0.20 mrad

Spectral Range: 7.5–14 µm

Thermal Sensitivity/NETD: <25 mK @ 30°C (86°F)

UltraMax: Yes

Video Lamp: Built-in LED light

Viewfinder: No

Visual Image: Full color visual image

Visual Video Recording: H.264 to the memory card

Visual Video Streaming: H.264 video using USB

MEASUREMENT & ANALYSIS

Area: 1 box with max./min./average

Color Alarm (Isotherm): No

Difference Temperature: Delta temperature between the measurement functions and the reference temperature

Emissivity Correction: Variable from 0.01 to 1.0 or selected from the materials list

Measurement Corrections: Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation

Measurement Function Alarm: No

Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2

Object Temperature Range: -40°C to 650°C (-40°F to 1202°F)

Object temperature range Accuracy: ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C

Profile: No

Spot Meter: 1

User Presets: The user can select and combine measurements from one box and one delta

USER INTERFACE

Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels

Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish

Text: No

Touch Screen: Yes

Voice: No

POWER

Battery operating time: >2.5 hours at 25°C (68°F) and typical use

Battery Type: Rechargeable Li ion battery

Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger

Charging Temperature: 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)

Charging Time: 2.5 hours to 90% capacity, charging status indicated by LEDs

External Power Operation: AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)

Power Management: Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown

ENVIRONMENTAL & CERTIFICATIONS

Humidity (Operating and Storage): IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles

Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

Storage Temperature Range: –40 to 70°C (–40 to 158°F)
