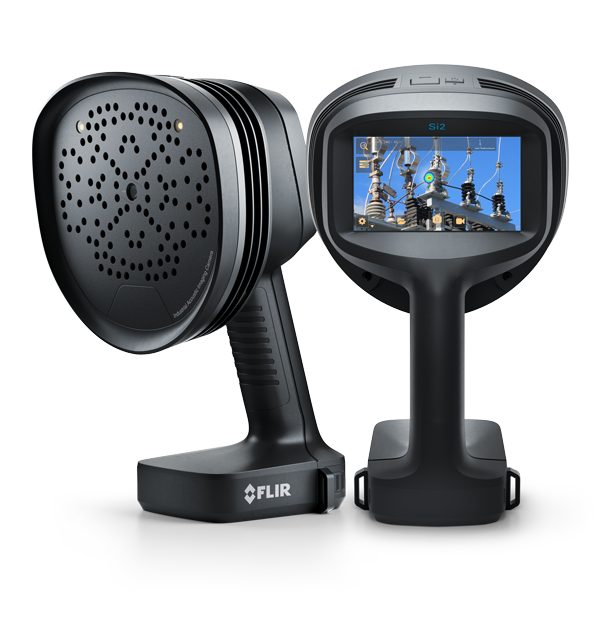

FLIR Si2-PD Industrial Acoustic Imaging Camera For Partial Discharge Detection (-15 dB SPL; 51 dB SPL; 1280 × 720)

Acoustic measurement: 124 low-noise MEMS microphones, real-time sound

visualization

Detection threshold

20 kHz: -15 dB SPL

35 kHz: 4 dB SPL

50 kHz: 10 dB SPL

80 kHz: 36 dB SPL

100 kHz: 51 dB SPL

Bandwidth: 2–130 kHz

Directional resolution: From 1° up to 0.125°

Operating distance: From 0.3 m (1.0 ft) up to 200 m (656 ft)

Digital camera: 12 MP color

Camera field of view: 75° diagonal

Video frame rate: Camera: 60 fps; Acoustic image: 30 fps; Screen: 70 fps

Zoom: 8x Digital zoom

Video image resolution: 1280 × 720

User Interface

Display

Size: 5 in. 1280 × 720

Resistive touch screen, TFT LCD, MIPI DSI

Integrated flashlight: LEDs, two modes: ON / OFF

Data transfer:

Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless

LAN, USB memory stick, Acoustic USB Adapter Cable

Camera power input

Nominal input voltage: 12 V DC

Max input: 17 V DC , 3.3 A (limited)

Battery

Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh

Usage: Up to 2.5 h

Charge time: approx. 2 h

Max output: 16.8 V DC, 5 A

Ingress protection: IP54

Camera size: 184 x 276 x 167 mm (7.2. x 10.8 x 6.5 in)

Camera weight: ~ 1.2 kg

Battery size: 85 × 77 mm (RRC2504)

Battery weight: ~ 0.25 kg
