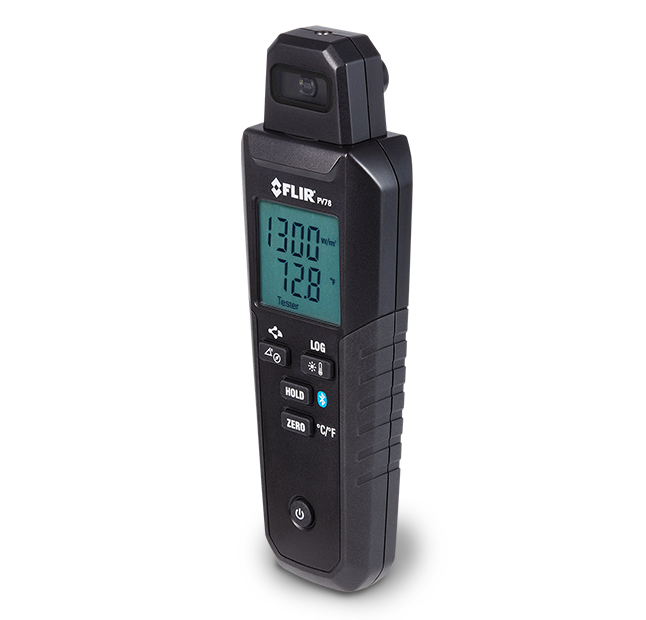

FLIR PV78 Solar Irradiance and Temperature Meter with Tilt Sensor (50 W~1400 W/m², –90° ~ 90°, –10°C ~ 50°C)

Measurement

Irradiance: Range: 50 W to 1400 W/m² | Accuracy: ±5%

Inclination angle: Range: –90° to 90° | Accuracy: ±3°

Temperature from meter: Range: –10°C to 50°C (14°F to 122°F) | Accuracy: ±1.5°C (±2.7°F)

Temperature from external probe: Range: –30°C to 100°C (–22°F to 212°F) | Accuracy: ±1.5°C (±2.7°F)

Compass: Range: 0° to 360° | Accuracy: ±7°

Measuring rate: 3 samples per second

Static Datalogging and Storage

Data storage interval: 1 minute

Readings per memory set: 360 set per file

Connectivity

Wireless technology: Bluetooth BLE

Communications protocol: METERLiNK

Bluetooth range: 10 m (32 ft)

Power System

Battery: 9 V Alkaline battery

Battery life: Approx. 25 hours, with alkaline battery

Auto power off: After approximately 30 minutes of inactivity

General Information

Calibration cycle: Once per year, recommended

Certifications

Certifications: CE, FCC, RCM

EMC standards: EN61326-1, EN300328

Environmental Data

Operating ambient temperatures and relative humidity (RH):

Meter: –10°C to 50°C (14°F to 122°F), <80% RH

Probe: –30°C to 100°C (–22°F to 212°F), <80% RH

Storage temperature and RH: –20°C to 60°C (–4°F to 140°F), 0 to 80% RH (without batteries)

Operating altitude: 2000 m (6560 ft)

Pollution degree: 2

Meter Physical Data

Weight: 300 g (0.66 lbs)

Dimensions (L × W × H): 240.5 mm × 67 mm × 38 mm (9.5 in × 2.6 in × 1.5 in)

Included in the box:

PV78

Pouch

External Temperature Probe

1 × 9 V Alkaline Battery

User Manual

Datasheet
