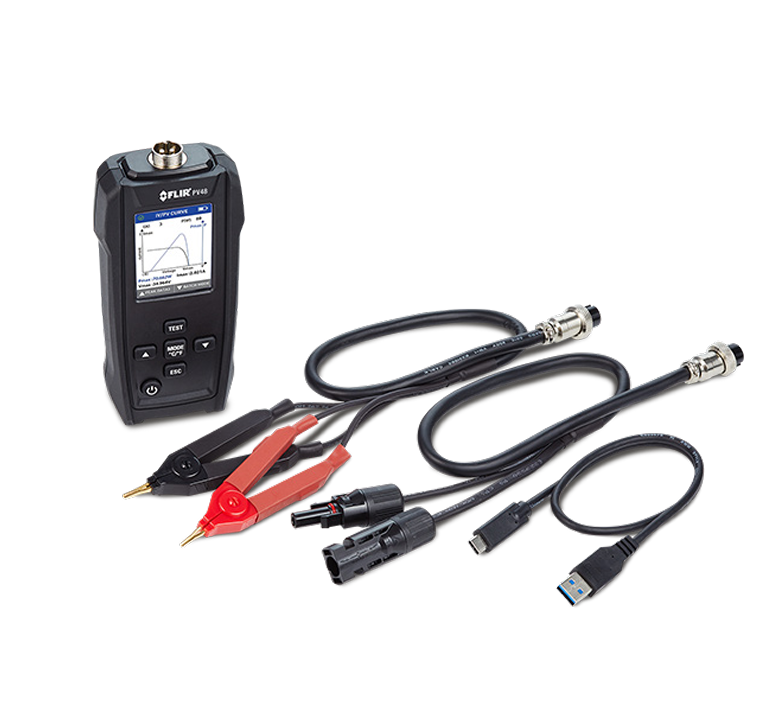

FLIR PV48 Solar Panel Tester and I-V Curve Tracer with Temperature Measurements (60V, 30A, 800W)

Electrical Measurement

Maximum Power Value (Pmax): Range: 0 W to 800 W | Accuracy: ±5%

Voltage at MMPT point (Vmax): Range: 0 V to 60 V | Accuracy: ±5%

Current at MMPT point (Imax): Range: 0 A to 30 A | Accuracy: ±5%

Open Circuit Voltage (VOC): Range: 0 V to 60 V | Accuracy: ±1%

Short Circuit Current (ISC): Range: 0 A to 30 A | Accuracy: ±1%

Device Temperature Protection: Range: 0°C to 60°C | Accuracy: ±3%

Measuring rate: 3 samples per second

Power System

Display: TFT Display

Backlight: White LED array

Calibration cycle: Once per year, recommended

Certifications

Certifications: CE, RCM, FCC

Safety standards: IEC 61010-1

EMC standards: EN61326-1

Environmental Data

Operating ambient temperatures and relative humidity (RH): –10°C to 50°C (14°F to 122°F), <80% RH

Storage temperature and RH: –20°C to 60°C (–4°F to 140°F), 0 to 80% RH

Operating altitude: 2000 m (6560 ft)

Pollution degree: 2

Meter Physical Data

Weight: 206 g (0.45 lbs)

Dimensions (L × W × H): 151.6 mm × 72.5 mm × 38 mm (5.97 in × 2.85 in × 1.50 in)

Included in the box:

PV48

Carrying Pouch

CAT III–300 V Double-Molded Alligator Clips

CAT III–300 V MC4 PV Plugs

1 × 3.7 V Li-ion Battery

User Manual

Datasheet
