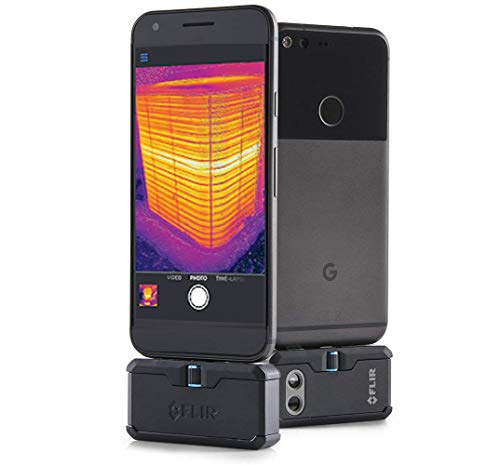

FLIR ONE PRO LT Thermal camera (Android; -20°C~120°C, 80 × 60pixels, USB-C)

Accuracy: ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.

Non-Operating Temperature: -20°C — 60°C (-4°F — 140°F)

Scene Dynamic Range: -20°C — 120°C (-4°F — 248°F)

Spot Meter: Off / °C / °F. Resolution 0.1°C / 0.1°F

Thermal Sensitivity/NETD: 100 mK

Weight: 36.5 g

Dimensions (H x W x D): 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)

Phone: Android (USB-C)

APP

Adjustable MSX distance: 0.3 m — Infinity

Battery charge monitor: 0 — 100%

Capture modes: Video, Still image, Time lapse

File Formats: Still images – radiometric jpeg Video – MPEG-4 (MOV)

Palette: Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel

Video: an Still Image Display/CaptureSaved as 1440 × 1080

CONNECTIONS & COMMUNICATIONS

- Charging: Female USB-C (5V/1A)

- Video: Male USB-C

ENVIRONMENTAL & APPROVALS

- Emissivity SettingsMatte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%

- Mechanical shock: Drop from 1.8m

- Operating Temperature: 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)

IMAGING & OPTICAL

- Focus: Fixed 15 cm — Infinity

- Frame Rate: 8.7 Hz

- General Description: Thermal and Visual Cameras with MSX HFOV/VFOV: 50° ±1° / 38° ±1°

- Shutter: Automatic/Manual

- Thermal Resolution80 × 60

- Thermal Sensor: Pixel size 17 µm, 8 — 14 µm spectral range

- Visual Resolution: 1440 × 1080

POWER

- Battery charge time: 40 min

- Battery Life: Approximately 1 hr
