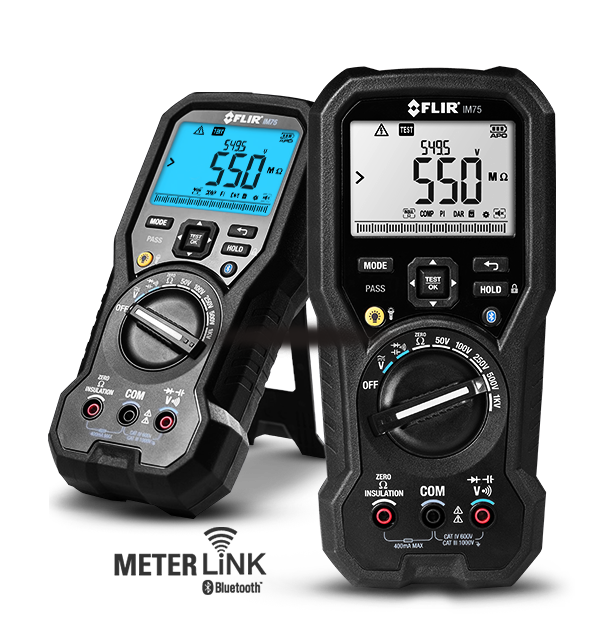

FLIR IM75 Insulation & DMM Combo (1000V, 20GΩ)

- Insulation Resistance: Range: 4M to 20GΩ; Accuracy: ±1.5%
- Insulation Test Voltages: Range: 50, 100, 250, 500 and 1000V; Accuracy: ±3.0%
- DC Voltage: Range: 1000.0V; Accuracy: ±0.1%
- AC Voltage: Range:1000.0V; Accuracy: ±1.5%
- VFD AC Voltage: Range:1000.0V; Accuracy: ±1.5%
- Earth Bond Resistance: Range: 40Ω to 40KΩ; Accuracy: ±1.5%
- Capacitance: Range: 10 mF; Accuracy: ±1.2%
- Frequency: Range:(ACV) 40kHz ; Accuracy: +/- 5 digits
- Diode Test: Range:2V; Accuracy: ±1.5%
- Continuity: Range: 400.0Ω; Accuracy: ±0.5%
General Information
- IP Rating, Drop Test: IP 54, 3m (9.8’)
- Category Rating: CAT III-1000V, CAT IV-600V
- Bluetooth RangeL: 10m (32’)
- Battery Type: 6 x AAA
- Memory: 99 internal storage locations
- Operating Temperature: 32 to 122°F (0 to 50°C)
