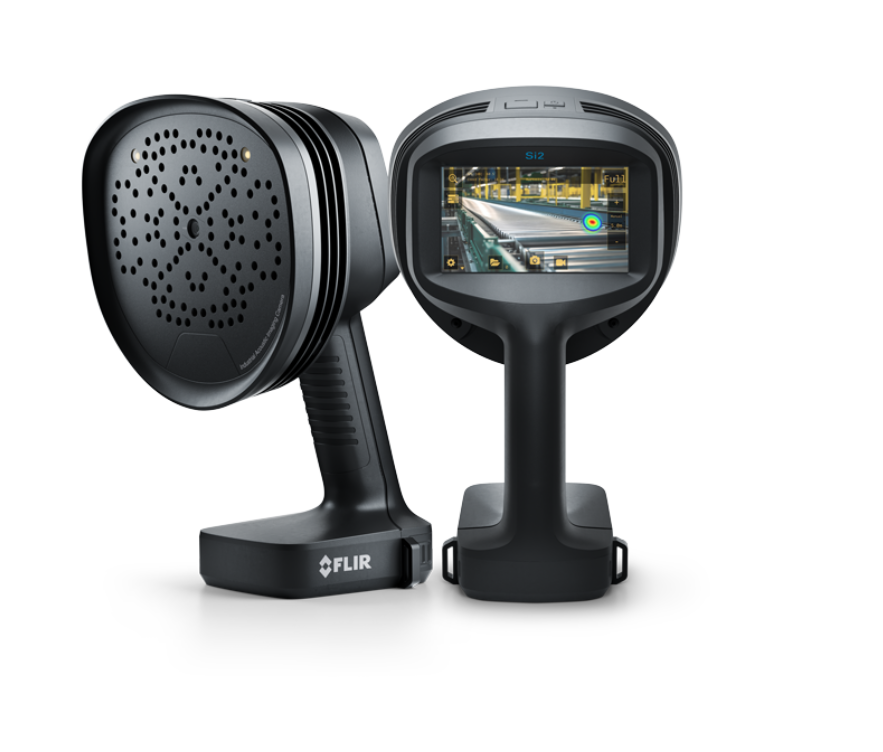

FLIR FLIR Si2-Pro Industrial Acoustic Imaging Camera for Partial Discharge Detection, Pressurized Leak Detection and Mechanical Fault Detection (20~100kHZ ; -7 ~ 51 dB SPL)

Acoustic Measurement

Detection threshold:

20 kHz: -7 dB SPL

35 kHz: 4 dB SPL

50 kHz: 10 dB SPL

80 kHz: 36 dB SPL

100 kHz: 51 dB SPL

Supported gases Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia

Other acoustic analysis modes: Mechanical fault detection

Severity Assessment: Automatic AI-based severity assessment including recommended actions onboard camera

Distance: From 0.3 m (1.0 ft) up to 200 m (656 ft)

Leak Rate: 0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Wireless Data Transfer:Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
