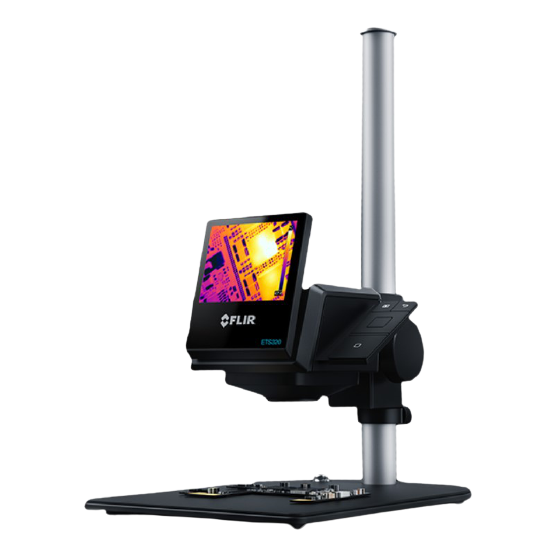

FLIR ETS320 Thermal Imaging System for Electronics Testing (320 x 240 pixels, up to 250°C.)

OVERVIEW

Camera size (LxWxH): 22x15x30 cm (8.7x5.9x11.8in)

Camera weight incl battery: 0.575 kg (1.27lbs)

Detector Type: Uncooled microbolometer

Directives and Regulations: Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006

Display: 3 in, 320 x 240 pixel color LCD

List of Contents: Camera, mount, stand, power supply, USB cable, FLIR Tools+ software

NETD: <60 mK

Packaging Size: 2.9 kg (6.4 lb.)

Spot Size Min. Focus: 170 µm

CONNECTIONS & COMMUNICATIONS

Interface: USB Micro: data transfer to and from PC and Mac devices

ENVIRONMENTAL

Emissivity Correction: Variable from 0.1 to 1.0

Emissivity Table: Table of pre-defined materials

Encapsulation & Shock & Vibration: IP 40 (IEC 60529)

Operating Temperature Range: 10°C to 40°C (50°F to 104°F)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

IMAGING & OPTICAL

Camera f-number: f/1.5

Field of view (FOV): 45° x 34°

Fixed Focus Distance: 70 mm ± 10 mm

Image Frequency: 9 Hz

IR Resolution: 320 x 240 (76,800 pixels)

Non-radiometric IR video streaming: Uncompressed colorized video using USB

Radiometric IR video streaming: Full dynamic to PC (FLIR Tools/Tools+) using USB

Spectral Range: 7.5 - 13.0 µm

MEASUREMENT & ANALYSIS

range: giải đo: up to 250°C.

Accuracy: ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)

Area: Box with max/min

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

Spot Meter: Center spot

POWER

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery type: Li-ion battery, charged in camera

Charging Time: 2.5 hrs to 90% capacity

STORAGE MEDIA

Image File Format: Standard radiometric JPEG, 14-bit measurement data included
