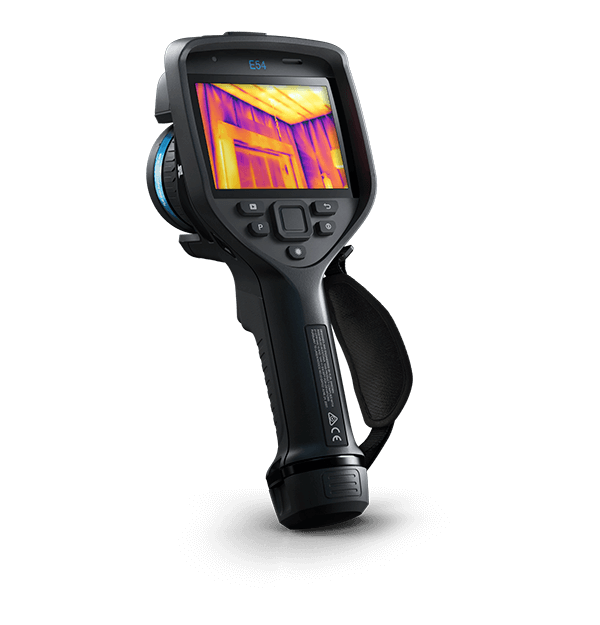

FLIR E54-24 Advanced Thermal Camera (320 × 240; -20~120°C/ 0~650°C; w/24° lens)

IR resolution : 320 × 240 pixels

Resolution with UltraMax® : —

MSX® image enhancement : Yes: details from visual camera add depth and perspective

Built-in visual camera : 5 MP, fixed focus, with built in LED light

Thermal sensitivity : <40 mK @ 30°C (86°F)

Temperature range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F)

Optional temperature range : —

Accuracy: ±2°C (±3.6°F) or ±2% of the reading

Focus modes : Manual

Digital zoom : 1–4x continuous

Measurement tools: 3 spotmeters in live mode, 1 area meter in live mode

Measurement presets: None, center spot, hot spot, cold spot ; 3 spots, Hot Spot-spot

Available lenses : 24° (fixed lens)

1-Touch Level/Span : Yes: automatic contrast enhancement

Laser pointer : Yes

Area measurement information: —

On-camera routing software : FLIR Inspection Route™ with baseline image comparison and image overlay guidance

On-camera report building : Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen

FLIR software integration FLIR Thermal Studio Suite, FLIR Research Studio:

Radiometric JPEG : Yes

IR, radiometric, visual video recording : Yes

IR, radiometric, visual video streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)

Communication modes : USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Cloud services : FLIR Ignite™ for automatic uploading of images directly from the camera to the cloud for easy, secure storage, editing, sharing, and reporting

METERLiNK® : Yes via Bluetooth

Display : 640 × 480 pixels (VGA) Dragontrail® touchscreen

Drop-testing : 2 m (6.6 ft)

Battery operation time : >2.5 hours, typical use
