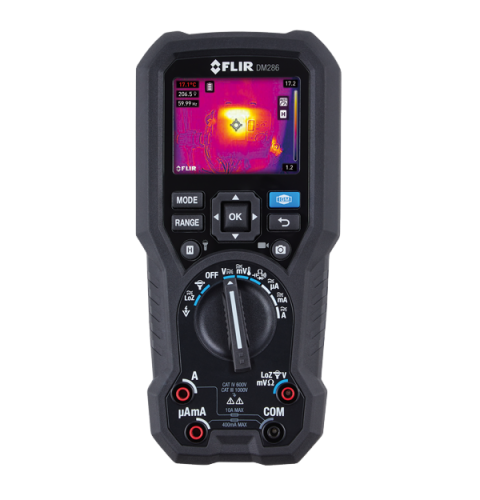

FLIR DM286 Industrial Thermal Imaging Multimeter (160 × 120, -5°C ~ 300°C, 1000VDC/AC, 10ADC/AC)

Imaging & Optical

Color Palettes: Iron, rainbow, arctic, white hot, and black hot

Field of view - visual: 71° × 56°

Focus: Fixed

Frame Rate: 9 Hz

Image Modes: Thermal MSX (Multi Spectral Dynamic Imaging); Thermal Camera only; Digital Camera only

IR Resolution: 160 × 120 (19,200 pixels)

IR Sensitivity: 150 mK (0.15°C)

Spectral Response: 8–14 µm

Thermal Imaging Detector: FLIR Lepton® microbolometer

Visual Focus and FOV: Fixed focus, 71° × 56° FOV

Visual Resolution: 2 MP (1600 × 1200 pixels)

Measurement & Analysis

AC/DC Amps: 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)

AC/DC LoZ V: 1000 V AC RMS or 1000 V DC ±(1.3%+4)

AC/DC mVolt: AC 600.0 mV ±(1.0％＋3) DC 600.0 mV±(0.2%+3)

AC/DC Voltage: 1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)

Calibration Cycle: Once per year, recommended

Capacitance: 10.00 mF ±(4.0%+5)

Contact Temperature Type K thermocouple: -40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C); (-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F)

Continuity check threshold: 10–100Ω

Diode Test: 1.500 V ± 0.9%

Display Counts: 6000

Frequency Counter: 100.00 kHz ±(0.1%+5)

Measuring Rate: 3 samples per second

Resistance: 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)

Temperature Accuracy: ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F)

Temperature Range: –5°C to 300°C (23°F to 572°F)

Temperature Resolution: 0.1°C (0.1°F)

Thermal Sensitivity: 150 mK (0.15°C)

VFD: AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz
