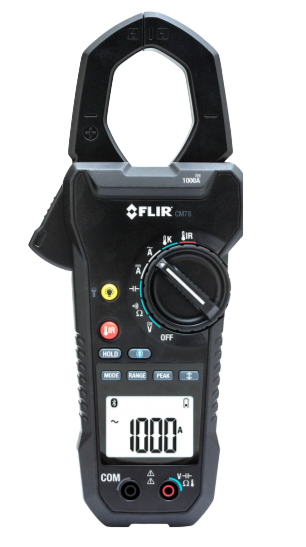

FLIR CM78 Clamp Meter (AC/DC 1000A; True RMS)

- AC/DC Current Range: Range: 1000 A; Accuracy: +/- 2.5%
- AC/DC Voltage: Range: 1000 V; Accuracy: +/- 1.5%
- Resistance: Range: 40.00 MΩ; Accuracy: +/- 1.5%
- Capacitance: Range: 4.000 mF; Accuracy: +/- 3%
- Frequency: Range: 4000 Hz; Accuracy: +/- 31.5
- Temperature (IR): Range: -20 to 518°F, -29 to 270°C; Accuracy: +/- 2%
- IR Distance to Target Ratio: 8 : 1 in
- Temperature (Type K): Range: -4 to 1400°F, -20 to 760°C; Accuracy: +/- 3%
General Information
- Bluetooth Range Max: 32 ft (10 m)
- Jaw Opening: 42 mm (1.7 in, 2000MCM)
- Safety Category: CAT IV-600V, CAT III-1000V
- Warranty: Limited Lifetime
- Certifications: CE, UL, FCC
