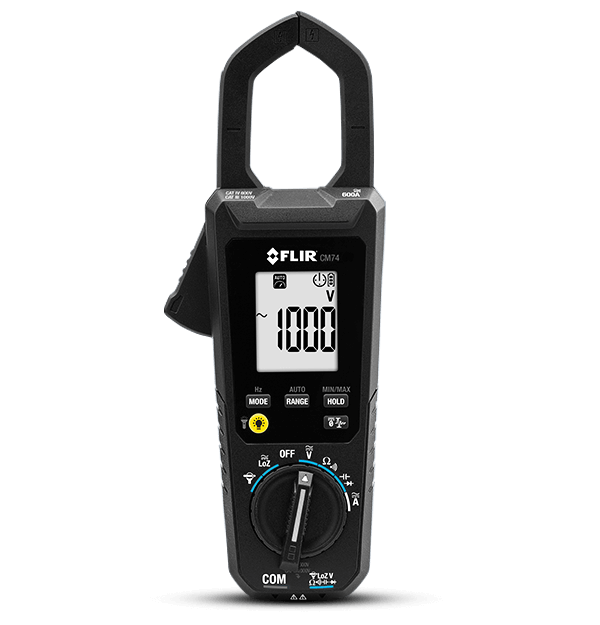

FLIR CM74 Clamp Meter (AC 600A; TRMS)

- DC Voltage: Range: 1000V; Accuracy: ±1.0%
- AC Voltage: Range: 1000V; Accuracy: ±1.0%
- VFD AC Voltage: Range: 1000V; Accuracy: ±1.0%
- LoZ Mode AC Voltage: Range: 1000V; Accuracy: ±1.0%
- LoZ Mode DC Voltage: Range: 1000V; Accuracy: ±1.0%
- AC Current: Range: 600.0A; Accuracy: ±2.0%
- DC Current: Range: 600.0A; Accuracy: ±2.0%
- VFD AC Current: Range: 600.0A; Accuracy: ±2.0%
- Inrush AC Current: Range: - 600.0A; Accuracy: ±3.0%
- Inrush Current threshold: - Min 0.5A, Integration Time 100ms
- Frequency: Range: 60.00kHz; Accuracy: ±0.1%
- Resistance: Range: 6000Ω; Accuracy: ±1.0%
- Continuity: Range: 600.0Ω; Accuracy: ±1.0%
- Capacitance: Range: 1000μF; Accuracy: ±1.0%
- Diode: Range: 1.5V; Accuracy: ±1.5%
General Information
- Display Counts: 6,000
- Jaw Opening: 1.38" (35mm), 1250MCM
- Category Rating: CAT IV-600V, CAT III-1000V
- Certifications: UL
- Battery Type: 4 x AAA
