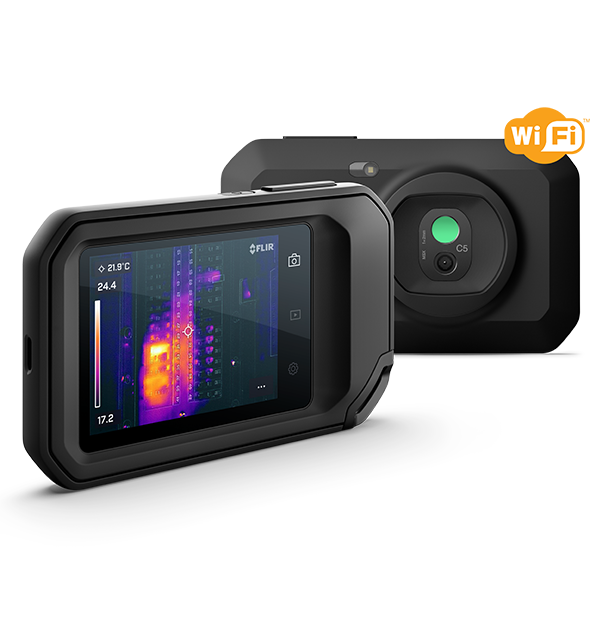

FLIR C5 Compact Thermal Camera (-20-400°C; incl. wifi)

Overview

• IR sensor: 160 × 120 (19,200 pixels)

• Thermal sensitivity/NETD: <70 mK

• Field of view (FOV): 54° × 42°

• Minimum focus distance:

Thermal: 0.1 m (3.94 in)

MSX®: 0.3 m (11.8 in)

• Image frequency: 8.7 Hz

• Focus: Focus free

• Spectral range: 8–14 µm

• Screen size: 3.5 in

• Visual camera: 5 MP

• Digital camera focus: Fixed

Image Presentation

• Image adjustment:

Automatic level and span

Manual level and span

1-Touch level and span

• Image modes :

Infrared image

Visual image

MSX (Embossed visual details on thermal image)

Picture-in-picture (IR area on visual image)

• Gallery: Thumbnails and custom folder structure

• Color palettes:

Iron

Gray

Rainbow

Arctic

Lava

Rainbow HC

• Screen rotation: Yes

• Touchscreen: Capacitive touch

Measurement & Analysis

• Object temperature range: -20 to 400°C (-4 to 752°F)

Accuracy:

At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)

0 to 100°C (32 to 212°F): ±3°C (±5.5°F)

100 to 400°C (212 to 752°F): ±3%

• Measurement functions:

Spot

Box with max./min.

• Measurement correction:

Emissivity; matt/semi-matt/semi-gloss + custom value

Reflected apparent temperature

Atmospheric compensation

Image Storage & Streaming

• Storage media: Internal memory and onboard FLIR Ignite cloud connectivity

(with Wi-Fi)

• Image storage capacity: >5000 images

• Image file format: Standard JPEG, 14-bit measurement data included

Communication & Connectivity

• Wi-Fi®: 802.11 a/ac/b/g/n (2.4 and 5 GHz)

• USB: USB 2.0, Type-C connector

• Bluetooth®: PAN

• Image upload: Directly upload images to FLIR Ignite cloud library and services

Additional Information

• Battery type: Rechargeable built-in Lithium ion battery

• Battery operating time: 4 hours

• Charging system: USB-C (1 A)

• Charging time: 2 hours

• External power operation: 5 V, USB-C

• Operating temperature range: -10 to 50°C (14 to 122°F)

• Storage temperature range: -40 to 70°C (-40 to 158°F)

• Encapsulation: Camera housing and lens: IP54 (IEC 60529)

• Drop test: Designed for 2 m (6.6 ft)

• Weight (including battery): 0.19 kg (0.42 lb)

• Size (L × W × H): 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)

• Tripod mounting (built-in): UNC ¼”-20
