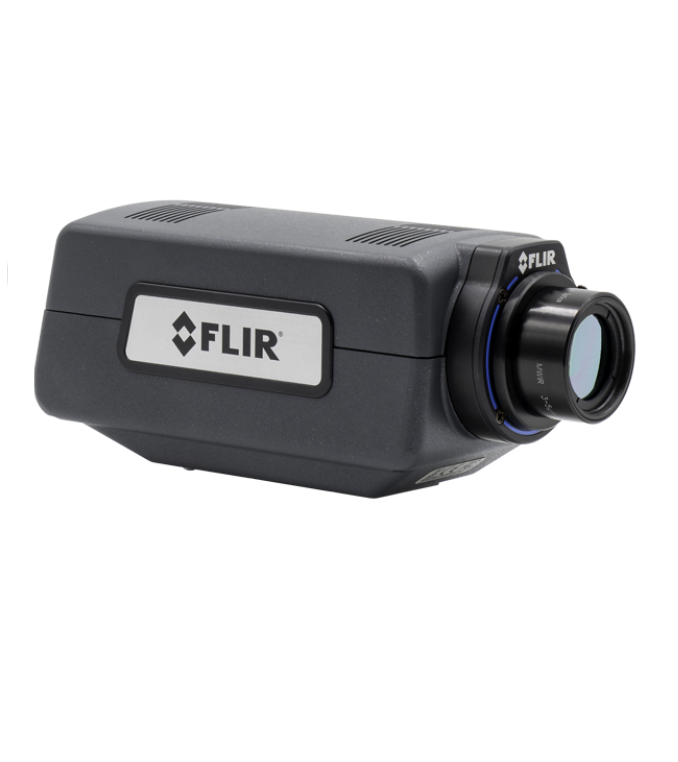

FLIR A6481 Long-Life Cooled MWIR Camera (640 × 512 pixels; -20°C ~ 350°C)

Focus: Motorized (compatible with manual)

Filter Holder (Warm): 3-position motorized filter wheel (1 in. diameter filters)

Available Lenses:

Manual (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm, 50 mm Macro

Motorized (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm

Detector Type: Flir HOT MW (SLS)

Spectral Range: 3.0 – 5.0 µm

IR Resolution: 640 × 512 pixels

Detector Pitch: 15 µm

Thermal Sensitivity/NETD: < 30 mK (25 mK typical at 30°C)

Sensor Cooling: Flir FL-100 liner (27,000-hour cooler life)

Frame Rate (Full Window): Programmable: 0.0015 Hz to 125 Hz

Dynamic Range: 14-bit

Integration Time: 480 ns to ~full frame

Radiometric Data Streaming: Gigabit Ethernet (GigE Vision)

Standard Video: SDI (720p @ 50/59.9, 1080p @ 29.9)

Command and Control: GenICam (GigE), RS-232

Standard Temperature Range: -20°C to 350°C (-4°F to 662°F)

Optional Temperature Range: Up to 3000°C (with ND1, ND2, or ND3 filters)

Accuracy: ≤ 100°C: ±2°C (±1°C typical); > 100°C: ±2% of reading (±1°C typical)

Camera f/#: f/2.5

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Power: 24 V DC (< 24 W steady rate)

Weight (without lens): 2.3 kg (5 lbs)

Size (L × W × H): 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in)
