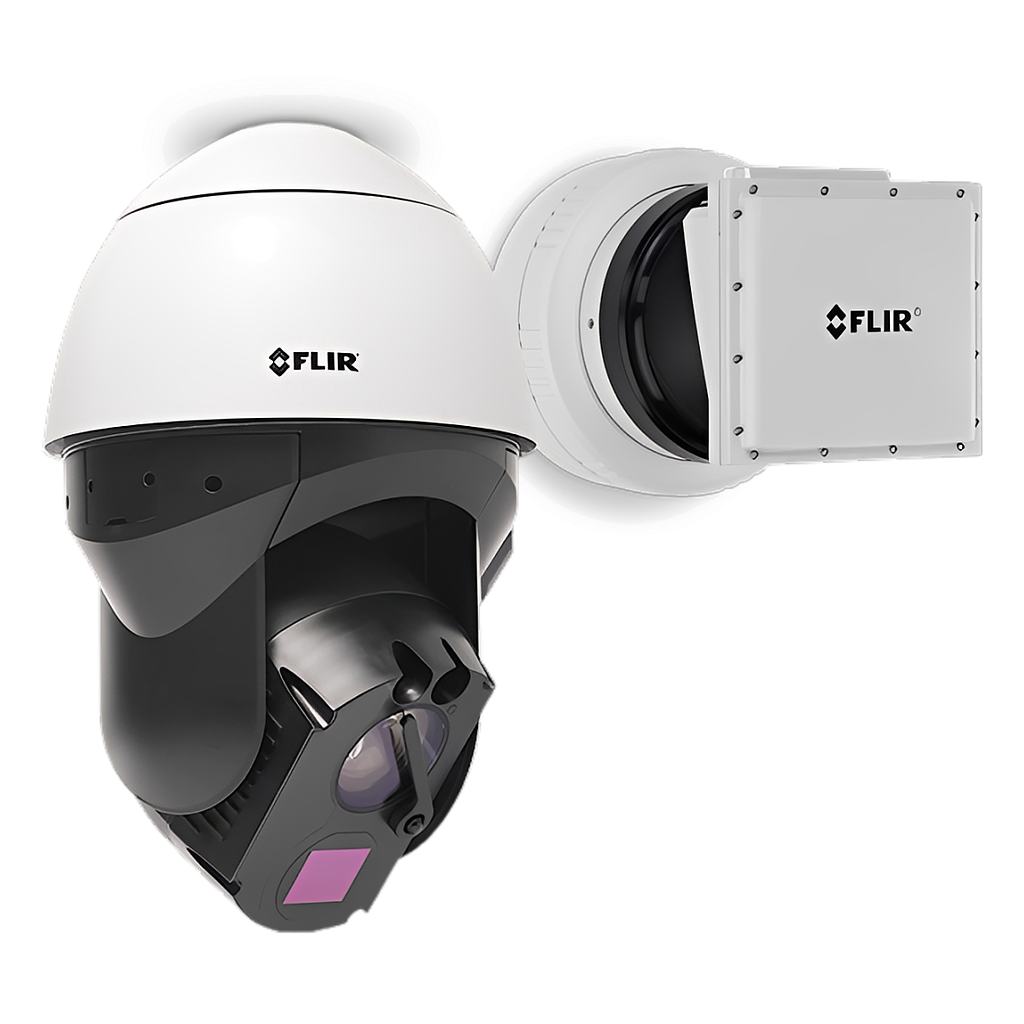

FLIR 427-0300-90-R290 Security Bundle (30° × 23° ~ 6° × 3°, 15 mm ~ 75 mm, f/1.2)

Elara R-290

Field of view (H × V): 90° × 20°

Frequency range: 24.075–24.175 GHz ISM Band

RF transmit power: 14 dBm (0.025 W)

Human detection range: 200 m (656 ft)

Vehicle detection range: 400 m (1312 ft)

Target detection speed: 0.2 m/sec

Radar targets: 32

Range resolution: 1.5 m (4.92 ft)

Range accuracy: <1 m (<3.28 ft)

Angular accuracy: 0.6°

Refresh rate: 10 Hz

Coverage area: Human detection 7.6 acres (30,000 m²)

Target information: GPS coordinates, velocity, RCS, range, azimuth angle/direction, heading, course/track, target ID

Supported protocols: AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI

Pan range: ±43°

Tilt range: 30° / −60°

Optional accessories:

421-0067-00: Pole Mount Kit

421-0066-00: Corner Mount Kit

421-0083-00: 180° Dual Radar Wall Mount Kit

4210755: PoE+ Power Supply

ELARA DX-6xx Specifications

Thermal Sensor & Optics

Array format: 640 × 480 pixels

Detector type: Long-life uncooled VOx microbolometer

Pixel pitch: 12 µm

Thermal sensitivity: <50 mK @ 25°C

Thermal frame rate: NTSC 30 Hz, PAL 25 Hz, 8.3 Hz

Fields of view (FOV): 30° × 23° to 6° × 3°

Focal lengths: 15 mm to 75 mm

f/number: f/1.2

E-Zoom: Continuous e-zoom up to 4×

Spectral range: 7.5 µm to 13.5 µm

Focus range: Motorized continuous zoom, autofocus with minimum focus range of 7 m (wide) to 18 m (narrow)

Video

Video compression: Thermal 1 channel H.264 & M-JPEG, Visible 2 independent channels H.264 & M-JPEG

Streaming resolution: Thermal QVGA to VGA, Visible VGA to 4K

Thermal image settings: Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast

Thermal AGC ROI: Default, Presets, User definable

Image uniformity optimization: Automatic Flat Field Correction (FFC)

Visible Light Camera

Sensor type: Full HD 4K, 1/1.8-type CMOS

Lens field of view: HFOV 61.8° to 2.15°, VFOV 36.65° to 1.2°

Focal length: 6.5 mm to 202 mm

Zoom: 31× optical zoom, continuous e-zoom up to 8×

f/number: f/1.55 (wide) to f/4.8 (tele)

Sensitivity: Color 0.25 lux, B/W 0.10 lux (AGC on, 30 fps)

System Integration

Ethernet: 10/100/1000 Mbps

Network APIs: FLIR SDK, FLIR CGI, ONVIF Profile S

Digital I/O: Input 4 sets 5 V 10 kΩ pull-up, Output 2 sets relay output max 130 mA 24 VDC/AC

Audio I/O: Bi-directional audio terminal block

Illumination: Up to 200 m NIR illumination, 6° / 30° / 90°, peak wavelength 850 nm

Wiper: Standard, compatible with washer accessory
