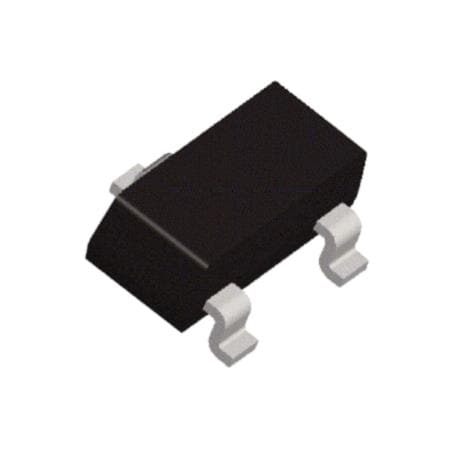

Fairchild FDN5630 MOSFET SSOT-3 N-CH 60V
Manufacturer: Fairchild Model: FDN5630 - Contact
Width: 1.4 mm
Height: 1.12 mm
Length: 2.9 mm
Fall Time: 6 ns
Rise Time: 6 ns
Technology: Si
Unit Weight: 30 mg
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 10 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 500 mW
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 10 ns
Typical Turn-Off Delay Time: 15 ns
Id - Continuous Drain Current: 1.7 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 6 S
Rds On - Drain-Source Resistance: 73 mOhms
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs th - Gate-Source Threshold Voltage: 1 V
