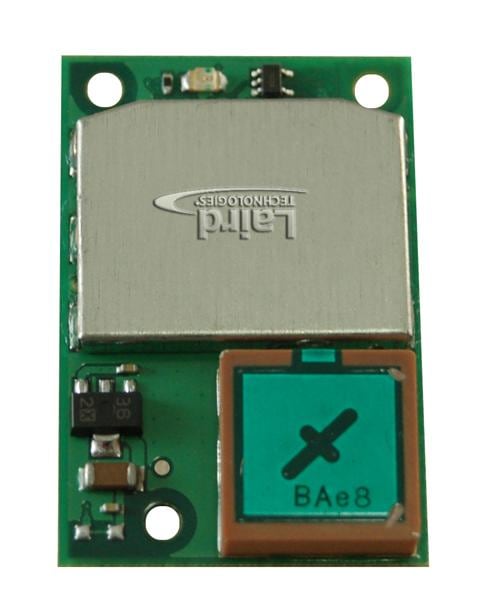

Ezurio TRBLU2300200-07-01 Bluetooth Modules Class1 Bluetooth Serial Module

Class: Class 1

Width: 25 mm

Height: 10 mm

Length: 35 mm

Antenna: Integrated

Protocol: Bluetooth 2.0

Data Rate: 300 kb/s

Frequency: 2.44 GHz

Sensitivity: - 84 dBm

Unit Weight: 8 g

Output Power: 6 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Modulation Technique: DTR, DSR, DCD, RI, RTS, CTS

Receiver Sensitivity: - 84 dBm

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
