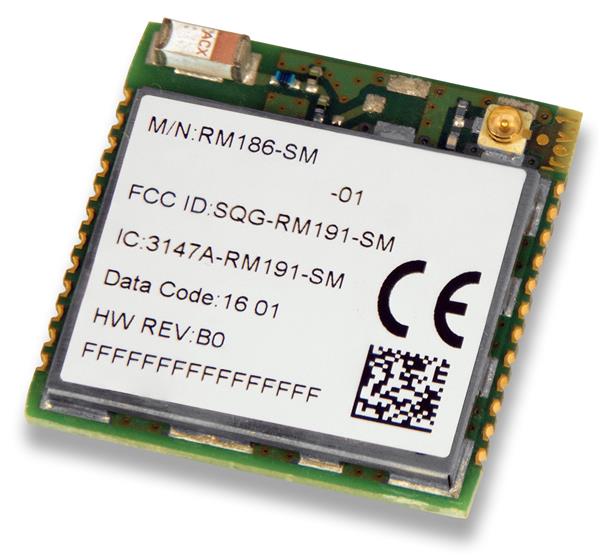

Ezurio RM186-SM-01 BLE, LoRa/LoRaWAN LoRa/BLE 868MHz LoRa EU version

Frequency: 868 MHz

Dimensions: 25.4 mm x 25.4 mm x 3.15 mm

Unit Weight: 3 g

Output Power: 14 dBm

Interface Type: GPIO, I2C, SPI, UART

Moisture Sensitive: Yes

Protocol - Sub GHz: LoRa/LoRaWAN

Description/Function: Intelligent LoRa/BLE module (868 MHz LoRa for Europe)

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: Chip

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Transmitting: 46 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: BLE
