Gain: 2.8 dBi, 3.4 dBi
VSWR: 2.:1

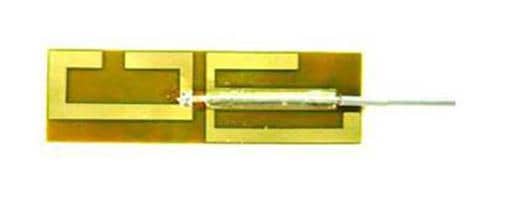

Style: I-Bar Flex
Width: 12 mm
Height: 0.1 mm
Length: 36 mm
Impedance: 50 Ohms
Cable Type: 100 mm RF1.13
Unit Weight: 2 g
Mounting Style: Adhesive Mount
Electrical Type: Embedded
Number of Bands: 2 Band
Center Frequency: 2.45 GHz, 5.4 GHz
Mechanical Style: PCB Trace
Maximum Frequency: 5.875 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: IPEX MHF4L
Protocol - WiFi - 802.11: WiFi 6E, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
