Gain: 0.5 dBi, 0.9 dBi, 2 dBi, 3.7 dBi, 4.1 dBi, 3.6 dBi, 3.5 dBi, 3.7 dBi, 3.4 dBi, 3 dBi, 2.4 dBi, 4 dBi
VSWR: 2.5, 2, 2.5, 2.2

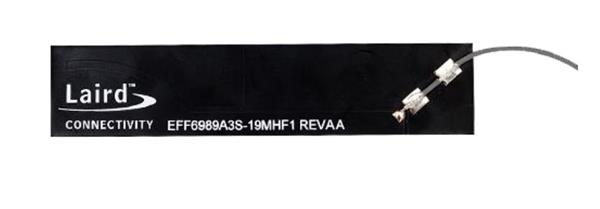

Style: I-Bar Flex
Width: 21 mm
Height: 0.2 mm
Length: 96 mm
Impedance: 50 Ohms
Cable Type: 190 mm RF1.13
Application: Cat M, Cat M1, CBRS, GNSS, LTE-M, NB-IoT, 5G NR Devices
Unit Weight: 2 g
Cable Length: 190 mm
Polarization: Linear - Vertical
Power Rating: 5 W
Mounting Style: Adhesive Mount
Electrical Type: Embedded Dipole
Number of Bands: 12 Band
Center Frequency: 649 MHz, 752 MHz, 850 MHz, 920 MHz, 1465 MHz, 1580 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2500 MHz, 3750 MHz, 5450 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 6 GHz
Minimum Frequency: 600 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: IPEX MHF1
Protocol - GPS, GLONASS: GNSS
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 4G/5G, Cellular (NBIoT, LTE), CBRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
