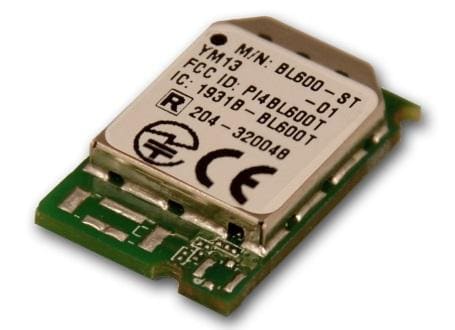

Ezurio BL600-ST Bluetooth Modules Class2 SingleMode BLE Module TracePins

Width: 12.5 mm

Height: 3 mm

Length: 19 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 4.0

Data Rate: 1 Mb/s

Frequency: 2.44 GHz

Sensitivity: - 91 dBm

Unit Weight: 1 g

Output Power: 4 dBm

Interface Type: GPIO, I2C, SPI, UART

Mounting Style: PCB

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Modulation Technique: BLE, GATT

Receiver Sensitivity: - 91 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 1.8 V to 3.6 V

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 25 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
