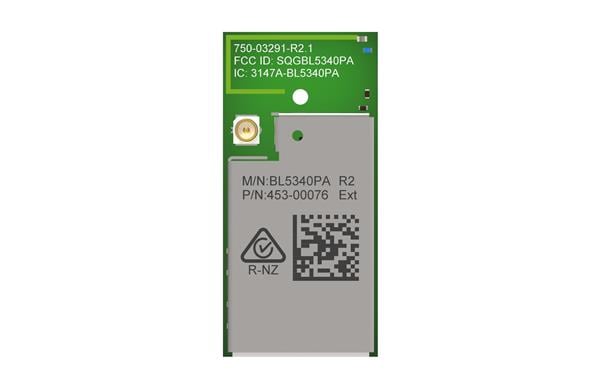

Ezurio 453-00076C Nordic nRF5340 SoC BL5340PA Series - Multi-Core / Protocol (Nordic nRF5340) - Trace pin (Cut Tape)

Antenna: Integrated Antenna

Data Rate: 500 kb/s

Frequency: 2.402 GHz to 2.48 GHz

Dimensions: 21 mm x 10 mm x 2.55 mm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Modulation Technique: PWM

Receiver Sensitivity: - 103 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: MHF4

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 11.6 mA

Supply Current Transmitting: 133.1 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.2
