EZDO SH005 Thermocouple and RTD Temperature Probe (Type K, 0.75 class)

*Thermocouple type K:

Sheath Material: SUS316

Sheath Diameter: 1.6Φ, 2.3Φ

Sheath Length: 5 to 50 cm

Operation temperature 800 °C/ 1472 °F

Accuracy: 0.75 class

Standard length of coil PU wire: 2 meters

*Thermocouple type J:

Sheath Material: SUS316

Sheath Diameter: 3.2Φ, 4.8Φ

Sheath Length: 5 to 50 cm

Operation temperature: 450 °C/ 842 °F

Accuracy: 0.75 class

Standard length of coil PU wire: 2 meters

*Thermocouple type T:

Sheath Material: SUS316

Sheath Diameter: 6.4Φ, 8.0Φ

Sheath Length: 5 to 50 cm

Operation temperature: 250 °C/ 482°F

Accuracy: 0.75 class

Standard length of coil PU wire: 2 meters

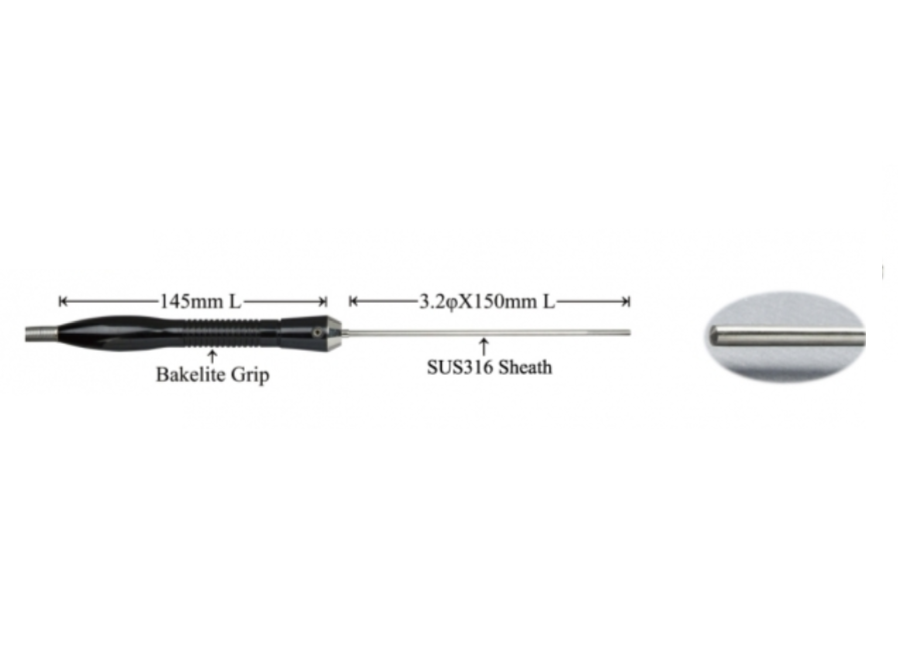

Handle length: 145 mm
