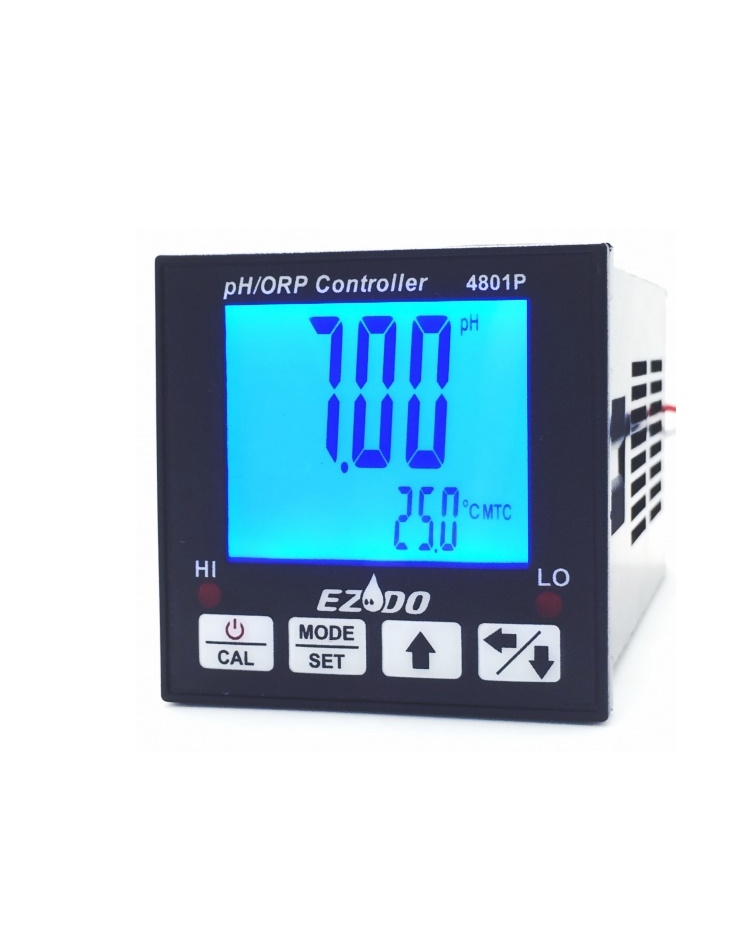

EZDO 4801P pH/ORP/Temp Controller (includes NEMA-4X)

pH

Range: -2.00~16.00 pH

Accuracy: ±0.01+1 digit

Resolution: 0.01 pH

Compensation: ATC: 0~100 °C

Deadband: 0.00 to 2.00 pH

ORP

Range: -1999 ~ -200 mV; -199.9 ~ 499.9 mV; 500 ~ 1999 mV

Accuracy: ±2+1 digit

Resolution: 0.1/1 mV

Compensation:N/A

Deadband: 0 to 200 mV

Temperature

Range: 0~110 °C

Accuracy: ±0.2+1 digit

Resolution: 0.1 °C

Temperature Compensation: 4801P: ATC (0-100°C) via 30K or Pt-1000 or MTC

Limit Relays (2): SPDT contacts rated for 5A at 115V

Relay status indicators: Front panel LED lamp

Power supply: 9V DC or 100V~240V AC

Panel Cutout: 1/16th DIN 1.81 x 1.81" (46 x 46mm)

Meter Dimensions: 4.7 x 1.77 x 1.77" (105 x 45 x 45mm)

Accessories: 9V DC adaptor (only for 9V DC version); Adapter connection wire (only for 9V DC version)
