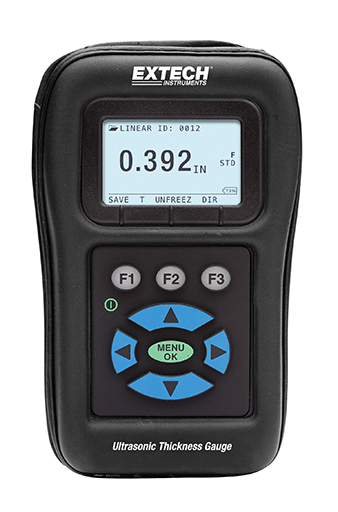

EXTECH TKG150 Digital Ultrasonic Thickness Gauge/Datalogger

- Thickness Range (in Steel):

+ 5MHz probe0.040 to 20" (1.0 to 508mm);

+ 10MHz probe: 0.020 to 20” (0.50 to 508mm) Option

- Languages:English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian

- Hold Mode Holds display to retain last thickness reading with reverse video display

- Freeze Mode Freezes display (ideal for high temperature readings)

- Fast Min/Max Mode Displays min or max and actual thickness value at 20 measurements/sec

Units Inches/Millimeters/Microseconds

- Alarms Min/Max depth, beeps and display flashes as well as keypad illumination; vibrate

- Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing

- Gain - Variable adjustment: Low, Standard, High

- B-Scan - Displays a cross section of the test piece: Non-Encoded

- Echo to Echo: Measure the metal thickness only (Paint & coatings do not affect base material thickness value)

- Differential Mode: Displays the difference from the actual thickness measurement and a user entered reference value

- Velocity Mode: Displays acoustic sound speed

- Datalogger: Records 100K readings in linear, 2D, 3D grid or boiler alphanumeric files, 20 character file name, export to excel via Extech XPorter interface program, also compatible with Ultrapipe

Battery Life: up to 50h

All models include 2oz bottle of couplant, 2 AA batteries, Transducer (5MHz, 0.375" diameter ) with potted cable, and hard case. TKG150 and TKG250 also include protective holster, Echo to Echo, B-Scan, USB cable, and Extech XPorter software
