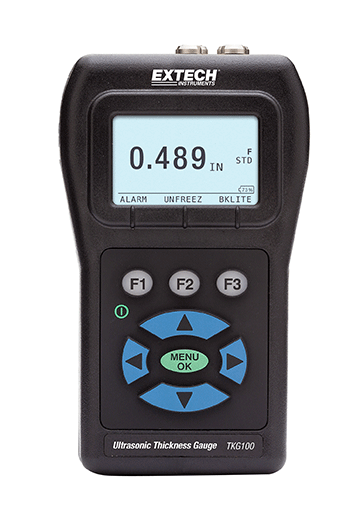

EXTECH TKG100 Digital Ultrasonic Thickness Gauge

- Thickness Range (in Steel):

+ 5MHz probe0.040 to 20" (1.0 to 508mm);

+ 10MHz probe: 0.020 to 20” (0.50 to 508mm) Option

- Languages:English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian

- Hold Mode Holds display to retain last thickness reading with reverse video display

- Freeze Mode Freezes display (ideal for high temperature readings)

- Fast Min/Max Mode Displays min or max and actual thickness value at 20 measurements/sec

Units Inches/Millimeters/Microseconds

- Alarms Min/Max depth, beeps and display flashes as well as keypad illumination; vibrate

- Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing

Battery Life: up to 50h

Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case
