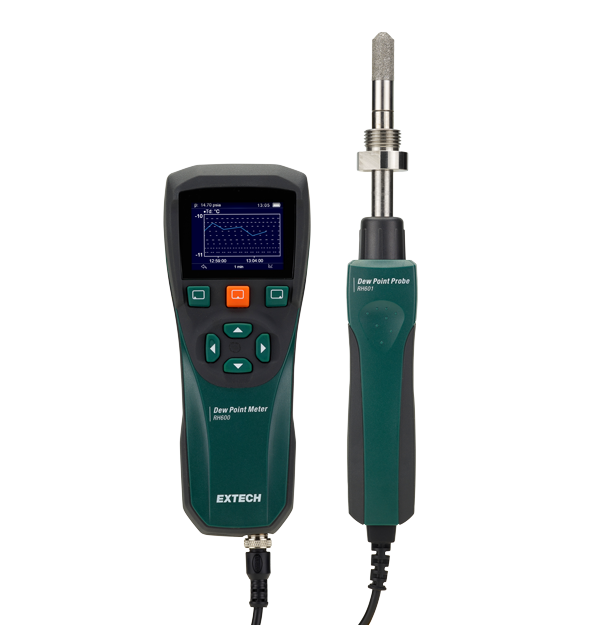

EXTECH RH600 Dew Point Meter (-40°C ~ 30°C)

GENERAL SPECIFICATIONS

Dew Point: Range: -40°C to 30°C (-40°F to 86°F), Basic Accuracy: ±3.6°F (±2°C)

Range: -50°C to -40°C (-58°F to -40°F), Basic Accuracy: ±4.5°F (±2.5°)

Max Resolution: 0.01°

Dimensions & Weight: 192 mm × 77 mm × 40 mm (7.5 in × 3.0 in × 1.6 in), 598 g (21.1 oz)

Relative Humidity:

- Range: 15 to 100% RH, Basic Accuracy: ±2% RH + 3% of reading

- Range: 5 to 15% RH, Basic Accuracy: ±1% RH + 5% of reading

- Range: 0 to 5% RH, Basic Accuracy: ±0.025% RH +17.5% of reading

- Max Resolution: .01% RH

Response Time:

- At flow rate 0.2 m/s, 1 bar pressure, 63% RH [90% RH]

- 0°C to 40°C Td (32°F to -40°F Td): 20 s [120 s]

- 40°C to 0°C Td (-40°F to 32°F Td): 10 s [20 s]

Temperature:

- Range: -10℃ to 60℃ (14℉ to 140℉)

- Max Resolution: 0.01°

- Basic Accuracy: ±0.3℃ (±0.54°F)

Water Concentration:

- Range: 40 to 20,000 ppm

- Max Resolution: 1

- Basic Accuracy: ±(7.3 ppm + 8.3% of rdg)

ADDITIONAL DETAILS

Data Logging: 32,000 data sets with time stamps

Operating Conditions: -10°C to 60°C (14°F to 140°F), Pressure: 0 to 20 bar

Accuracy at environment temperature: 16°C to 25°C (60.8°F to 77°F)

Power: 3.7 V rechargeable Li-ion battery (included)
