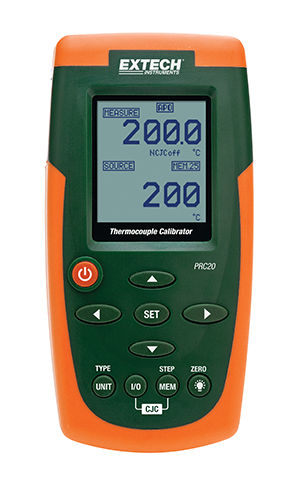

EXTECH PRC20 Thermocouple Calibrator

- Thermocouple:

+ Type J: -58 to 1832°F (-50 to 1000°C) /0.05% rdg ±1°

+ Type K: -58 to 2498°F (-50 to 1370°C) /0.05% rdg ±1°

+ Type T: -184 to 752°F (-120 to 400°C) /0.05% rdg ±1°

+ Type E: -58 to 1382°F (-50 to 750°C) /0.05% rdg ±1°

+ Type C: 32 to 3182°F (0 to 1750°C) /0.05% rdg ±1°

+ Type R/S: 32 to 3182°F (0 to 1750°C) /0.05% rdg ±1°

+ Type N: -58 to 2372°F (-50 to 1300°C) /0.05% rdg ±1°

- Voltage: -10.00mV to +60.00mV /10μV ±1d

- Resolution: 0.1° (up to 999.9) or 1° (over 999.9°) for J, K, T, E ; 1° for R, N; 0.5° for C, S

- Input Impedance: 10 MΩ

- Sampling Time: 4 times/second

Meter Dims (LxWxH): 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)

Meter Wt: 8oz (225g) - not including battery weight

Complete with Thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC Universal Adaptor with 4 plugs, 6 x 1.5V AA

batteries, and hard carrying case
