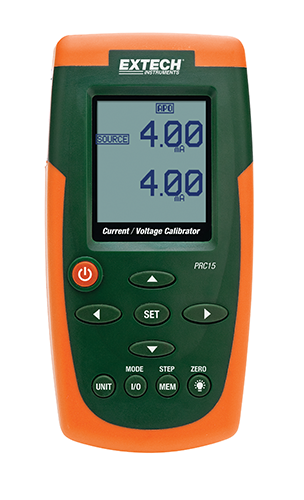

EXTECH PRC15 Current and Voltage Calibrator/Meter

Source Output: 0 to 24mA current for loads up to 1000 ohms (-25% to 125%), Output 0 to 20V

Measure: 0 to 50mA current signal (-25 to 230%), 0 to 19.99V

Input/Output Ranges and Displays Resolution

0 to 19.99mA /0.01mA

0 to 24.0mA /0.1mA

0 to 1999mV /1mV

0 to 20.00V /10mV

Accuracy: 0.01% ±1 digit

Meter Dims (LxWxH) 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)

Meter Wt 8.2oz (232g) - not including battery weight

Each meter includes test leads, alligator clips, 100V-240V AC Universal Adaptor with 4 plugs, six

1.5V AA batteries, and hard carrying case
