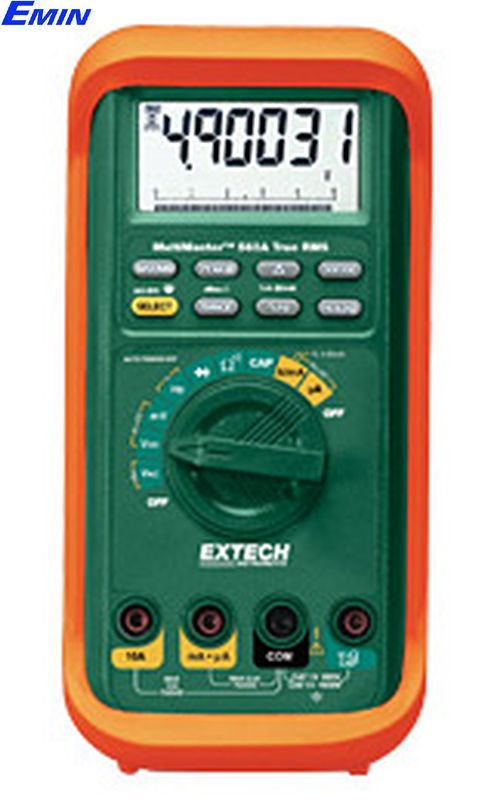

Extech MM560A MultiMaster® High-Accuracy Multimeter

DC Voltage: 500mV, 5V, 50V,500V, 1000V /Max 0.01mV/±0.03%

AC Voltage:500mV, 5V, 50V, 500V, 1000V /Max 0.01mV /±0.8%

DC Current: 500μA, 5000μA, 50mA, 500mA, 5A, 10A /Max 0.01μA /±0.1%

AC Current: 500μA, 5000μA, 50mA,500mA, 5A, 10A /Max 0.01μA /±1%

Resistance (Ω): 500, 5k, 50k, 500k, 5M, 50M/Max 0.01Ω /±01%

Capacitance 50nF to 9999μF /Max 0.01nF /±0.8%

Line Frequency: 5Hz to 200kHz /Max 0.0001Hz/±0.002%

Logic Frequency: 5Hz to 2MHz /Max 0.0001Hz/±0.002%

Duty Cycle: 0.1% to 99.99% /Max 0.01% /±3d/kHz

Dimensions/ Wt:186 x 87x 35.5mm / 340g

Complete with test leads, protective holster with stand and 9V battery

Manufacturer: Extech USA

Discontinued
